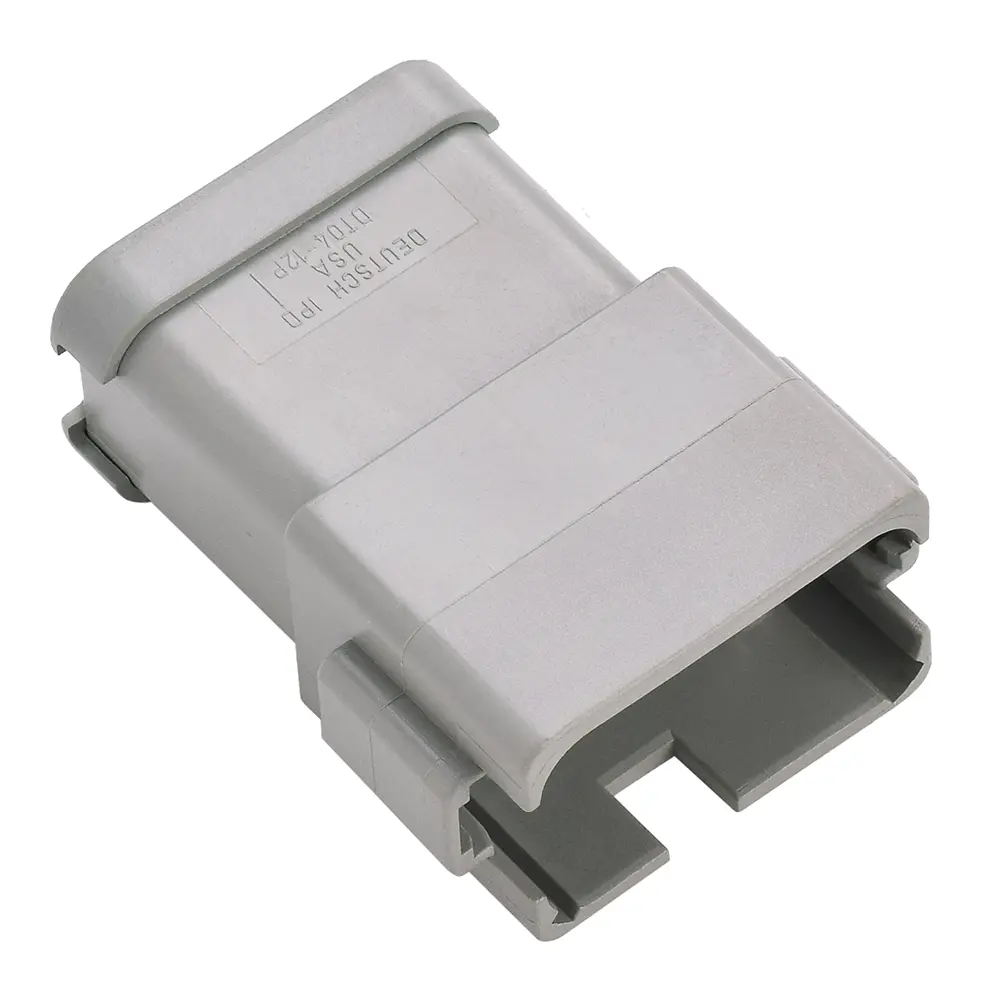

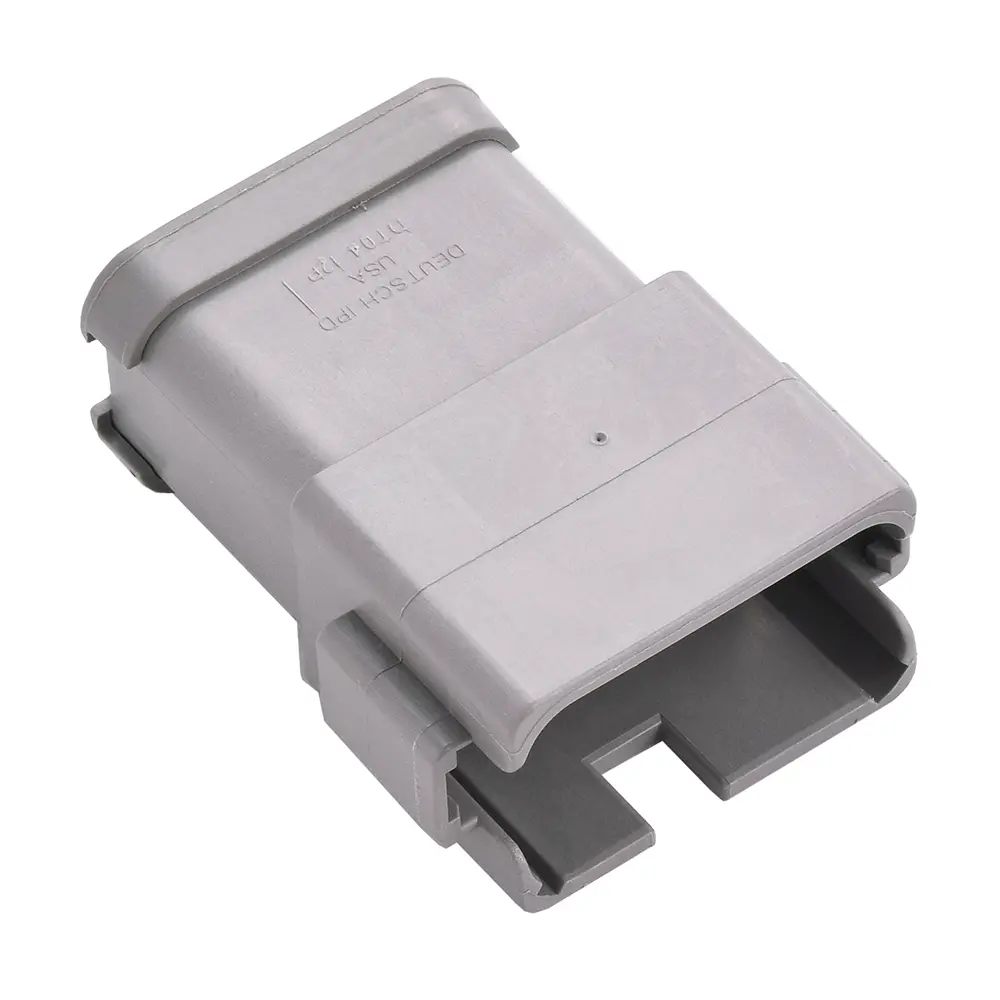

Deutsch DT series 12 way bussed receptacle connector, perfect when you need to join multiple power or ground wires together at a single point.
Specifications:
- 3 separate busses
- Pins 1,11,12 are bussed together 13 amps max
- Pins 4,8,9 are bussed together 13 amps max
- Pins 5,6,7 are bussed together 13 amps max
- The 12 pin bussbar connector has a maximum current rating of 39 amps
- Contacts are molded into connector, wedgelock is included
- Mating connector is DT06-12SA or DT06-12SA-E008
