AS007-98SA Deutsch AS (MINI) Series 3-Way Receptacle Kit

Name: AS,3 WAY,FLG,SKT,A KEY,YELLOW
SKU: AS007-98SA
Price: 55.20 USD
Availability: InStock

Deutsch

Item No. AS007-98SA

$55.20 / EA

Features & details

Deutsch Autosport AS007-98SA 3-way flanged receptacle connector kit with socket (female) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

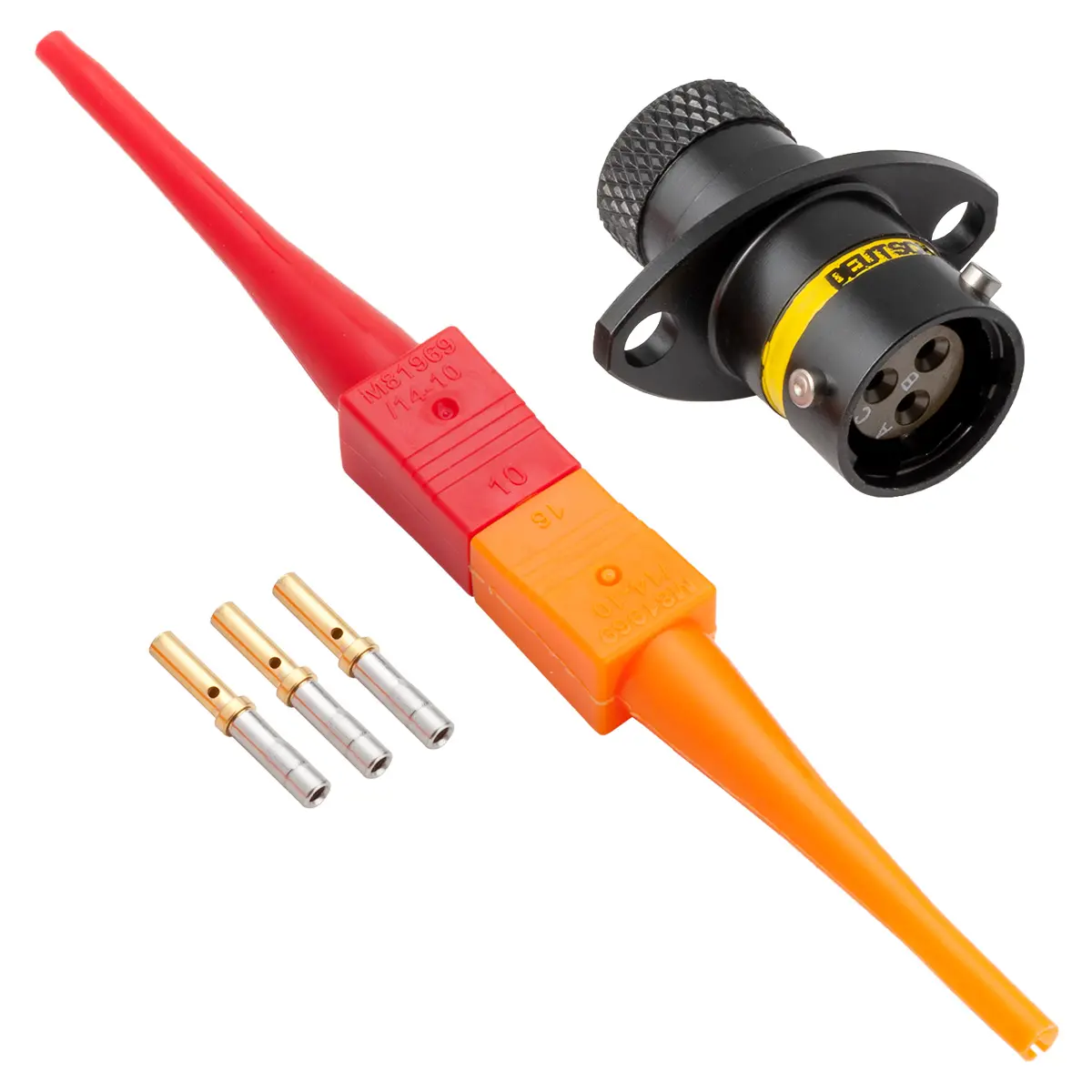

Kit Includes

(1) 3-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(3) Size 20 socket (female) contacts (24-20 AWG, 7.5 A each) 6862-201-20278
(1) Insert/Removal Tool M81969/14-10

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-10

Shrink Boots

Straight202K121-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	AS (MINI)
Shell Size	7
Wire Range (AWG)	24-20
Contact Gender	Socket (Female)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	6862-201-20278
Insert Arrangement	35977
No. Of Positions	3
Contact Size	20
90º Shrink Boot	222K121-25-0
Connector O.D.	.543" (13.8 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	7.5 A
Filler Plug	600300-20
Receptacle Gasket	GV-7
Insert / Removal Tool	M81969/14-10
MFG.	TE Connectivity
Mating Plug Connector	AS607-98PA
Nut Plate	AS-7
Panel Cutout	.547" (13.9 mm)
Protective Cap	AS907
DMC Positioner / Turret	M22520/2-10
Shell Material	Aluminum
Straight Shrink Boot	202K121-25-0
Termination Style	Crimp

Price $55.20 / EA

Shipping details

Availability: 1 low stock

Quantity:

Documents

CAD File for AS007-98SA

Drawing AS007-98SA

Deutsch AS (MINI) Series Catalog Page
