AS007-35SN Deutsch AS (MINI) Series 6-Way Receptacle Kit

Name: AS,6 WAY,FLG,SKT,N KEY,RED
SKU: AS007-35SN
Price: 54.00 USD
Availability: InStock

Deutsch

Item No. AS007-35SN

$54.00 / EA

Features & details

Deutsch Autosport AS007-35SN 6-way flanged receptacle connector kit with socket (female) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

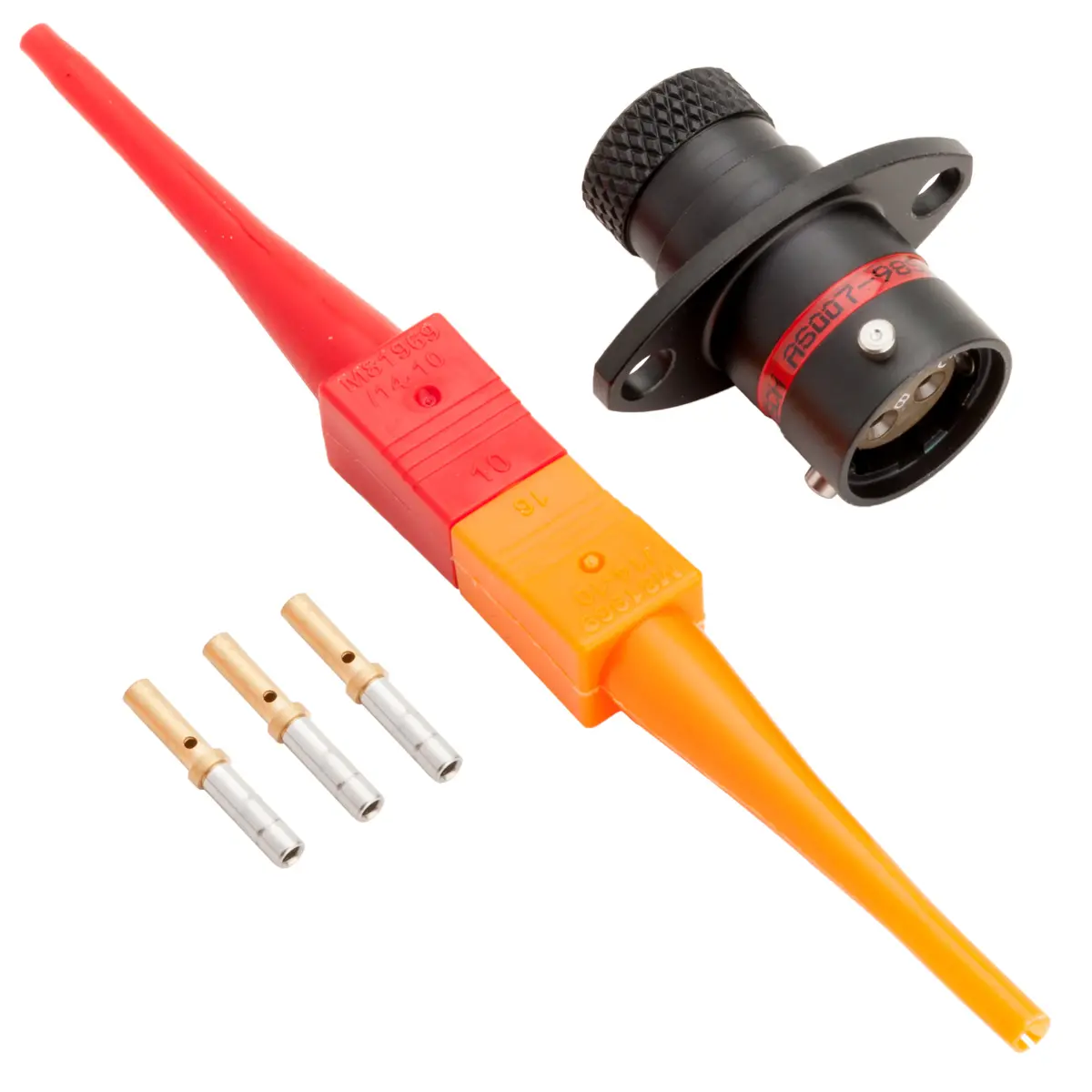

Kit Includes

(1) 6-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(6) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 604887
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1487

Shrink Boots

Straight202K121-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	N (Red)
Series / Range	AS (MINI)
Shell Size	7
Wire Range (AWG)	26-22
Contact Gender	Socket (Female)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	604887
Insert Arrangement	49491
No. Of Positions	6
Contact Size	22
90º Shrink Boot	222K121-25-0
Connector O.D.	.543" (13.8 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-22
Receptacle Gasket	GV-7
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity

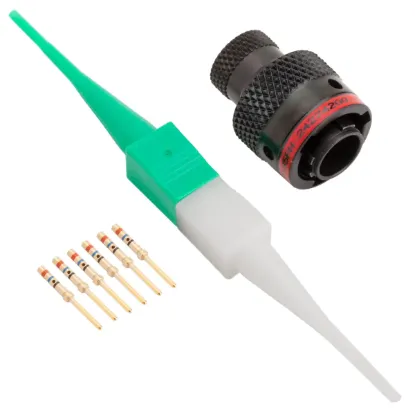

Mating Plug Connector	AS607-35PN
Nut Plate	AS-7
Panel Cutout	.52" (13.2 mm)
Protective Cap	AS907
DMC Positioner / Turret	K1487
Shell Material	Aluminum
Straight Shrink Boot	202K121-25-0
Termination Style	Crimp

Price $54.00 / EA

Shipping details

Availability: 5 Each In Stock, ready to be shipped

Quantity:

Documents

CAD File for AS007-35SN

Drawing AS007-35SN

Deutsch AS (MINI) Series Catalog Page
