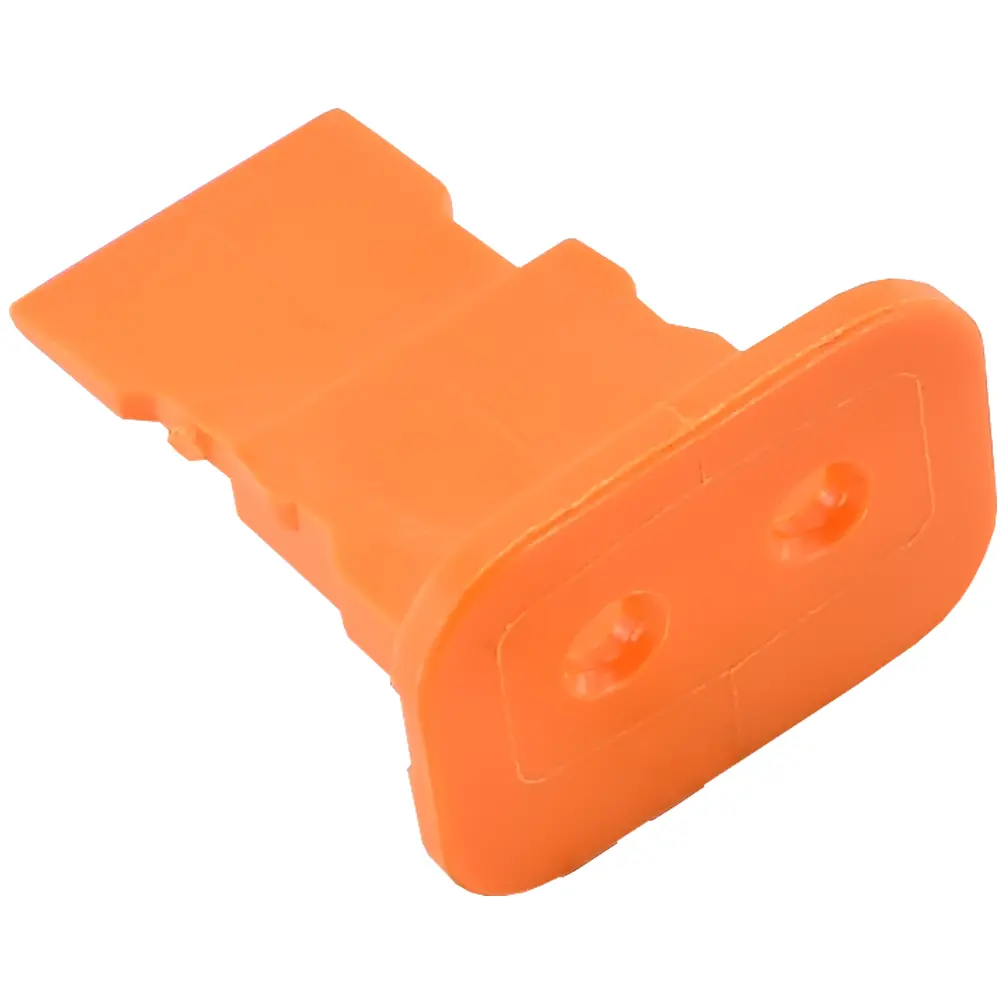

TE Connectivity/DEUTSCH W2S orange wedgelock (secondary lock) for 2-way DT plug housings. After the socket (female) contacts are crimped and pushed into the housing, the wedgelock snaps in from the front to lock and align them. Every DT housing needs one, and it is sold separately.
you can now configure Deutsch DT series connectors by using our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
W2S Details
- Series: Deutsch DT
- Positions: 2
- Fits: 2-way DT plug housings (DT06 series)
- Color: Orange
- Material: PBT GF30 (30% glass-filled polyester)
- Contact Size: 16, socket (female)
- Type: Standard type
- Operating Temperature: -55°C to +125°C
Removal
- To remove the wedgelock (for example to service a contact), use the DT-RT1 wedgelock removal tool.
Technical Information
- The Documents section has TE's customer drawing and 3D CAD model for this part.
- DT series parts are compatible with Amphenol AT series connectors and related accessories.
