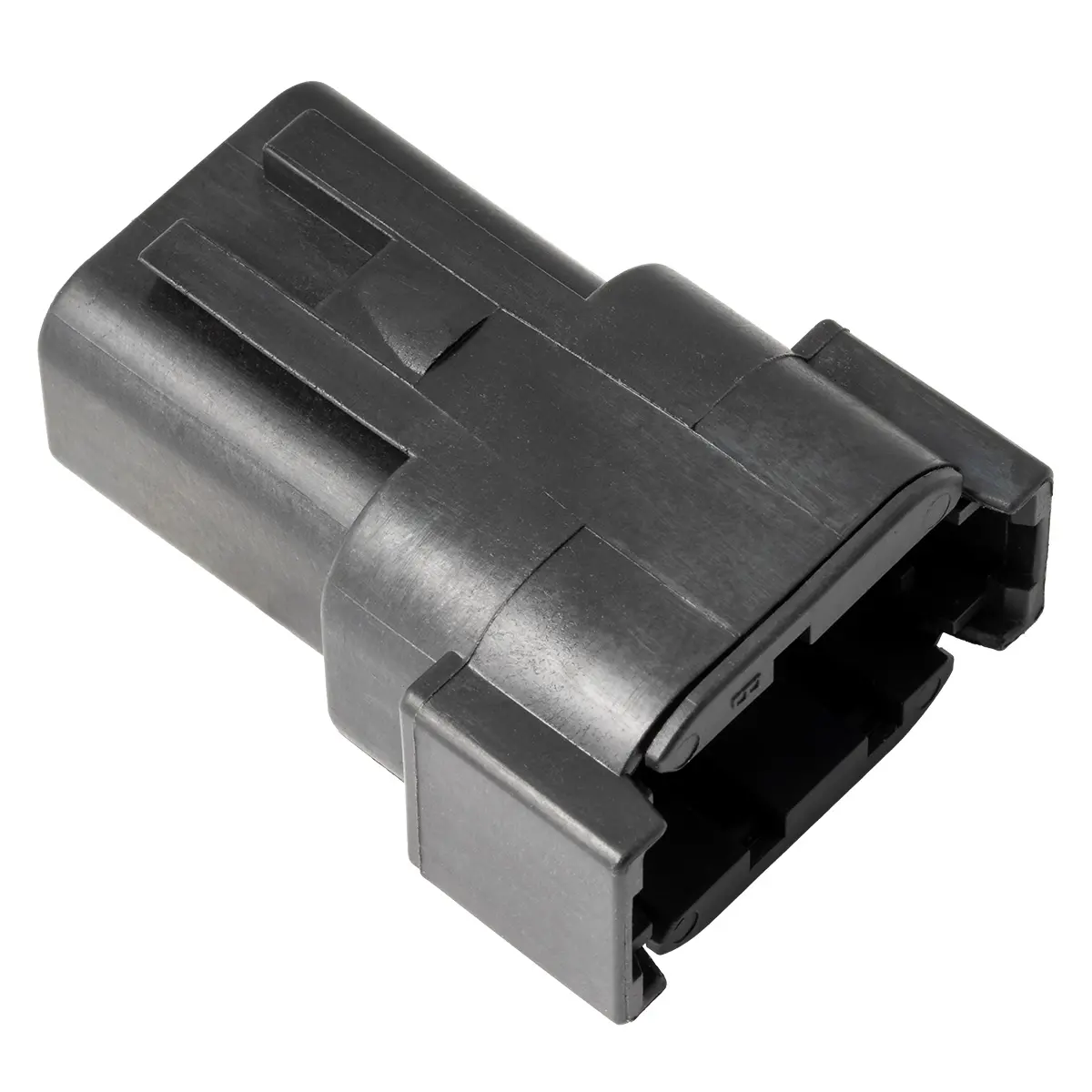

DTM04-08PB Deutsch DTM Series 8-Way Receptacle Connector

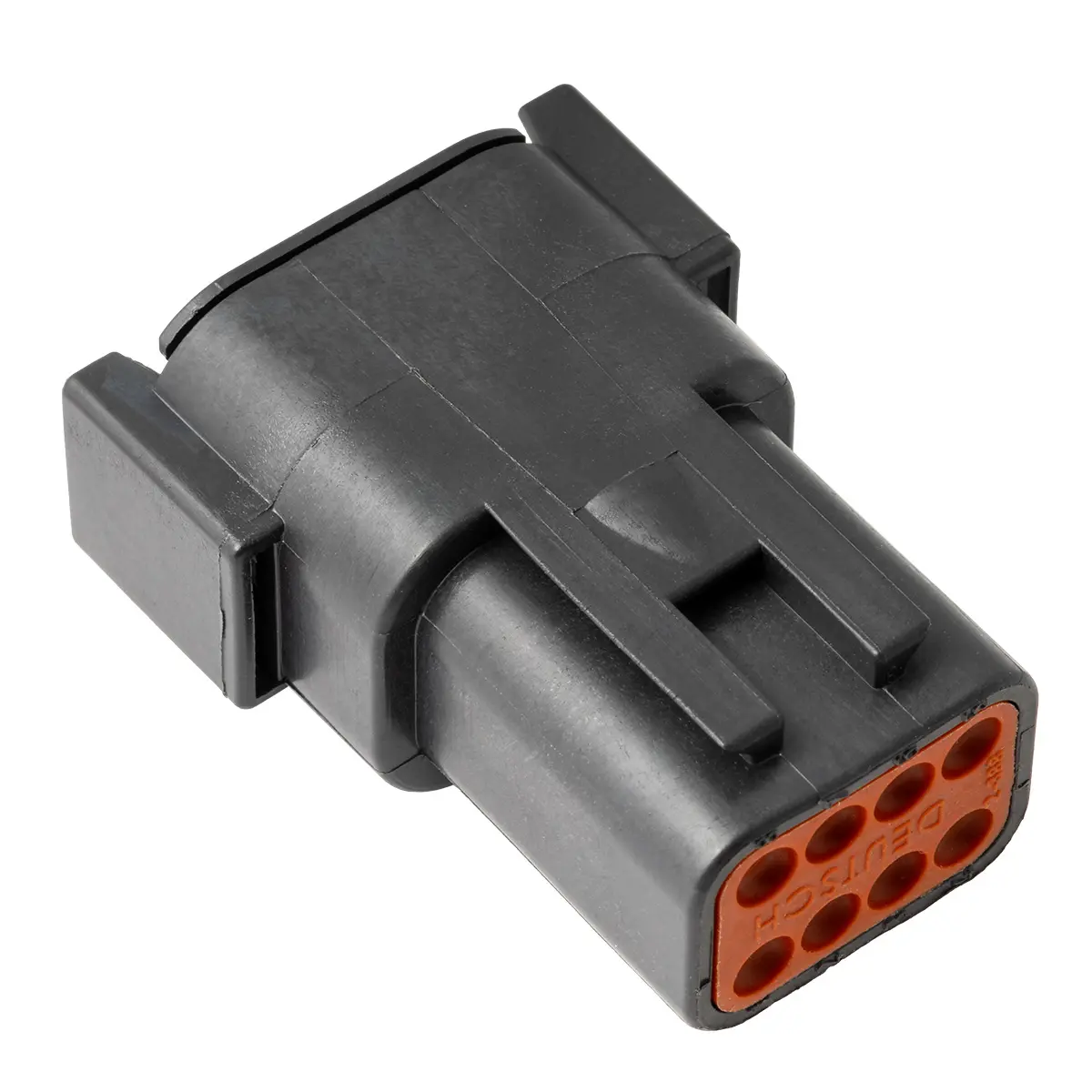

Name: DTM04-08PB BLACK RECEPTACLE HOUSING
SKU: DTM04-08PB
Price: 6.29 USD
Availability: InStock

Deutsch

Item No. DTM04-08PB

$6.291 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$6.291	$6.29
10	$4.814	$48.14
50	$4.552	$227.60
100	$4.289	$428.90

Features & details

TE Connectivity/DEUTSCH DTM04-08PB 8-way DTM Receptacle housing. Compatible with stamped and solid barrel, size 20, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.

you can now configure Deutsch DTM series connectors by using our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM04-08PB Details

Wire Range: 20-24 AWG (0.2-0.5 mm²)*; 18-16 AWG (0.8-1.3 mm²) with the 18-16 AWG solid contacts listed below
Housing Color: Black
Contact Size: 20 (each terminal is rated for 7.5 amps.)
Keyway: B (this is typically indicated by the black color of the housing, though some exceptions to this rule exist).
Overall Width: 1.245 (31.62)
Overall Length: 1.720 (43.69)
Overall Height: .796 (20.22)

Connector Boots

Straight Shrink Boot202K232-25-0

Mating Connector(s)

DTM06-08SB

Required Wedgelock

WM-8P

Solid Contacts

20-24 AWG Nickel*0460-202-20141
18-16 AWG Nickel0460-010-20141
24-20 AWG Mil-Spec GoldM39029/4-110
20-24 AWG Gold*0460-202-2031
18-16 AWG Gold0460-010-2031

* 18 AWG wire can be used if the wire is stripped perfectly.

Stamped Contacts

22-16 AWG Nickel1060-20-0122
22-16 AWG Gold1060-20-0144

Mounting Clips

Plastic Mounting Clip1011-026-0205
Stainless Steel Mounting Clip1027-003-1200

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Notes

Please see the Mating Connectors, Tools, Wedgelocks, Contacts, Boots, and Clips tabs to purchase the mating connector, crimp tools, wedgelocks, contacts, boots, and mounting clips.
