Deutsch DTM Series Connectors

• Specifically designed for small AWG applications ranging from 22-18 Ga with a max amp draw of 7.5 amps per contact.
• DTM series connectors incorporate an integrated latching system which allows for an excellent electrical and mechanical connection
• Thermoplastic housing
• RoHS Compliant
• Available in 2,3,4,6,8,12 way configurations
• 16 ga contacts available ( 7.5 amps max)
• Accepts size 20 solid or stamped and formed contacts
• Try our Deutsch Kit Builder


  Deutsch Heat Shrink Boots Pictorial


  Deutsch DT Series Heat Shrink Boots (PDF, 564 KB)


  Assembly Manual

  Deutsch DT Series Assembly Instructions (PDF, 10,409 KB)

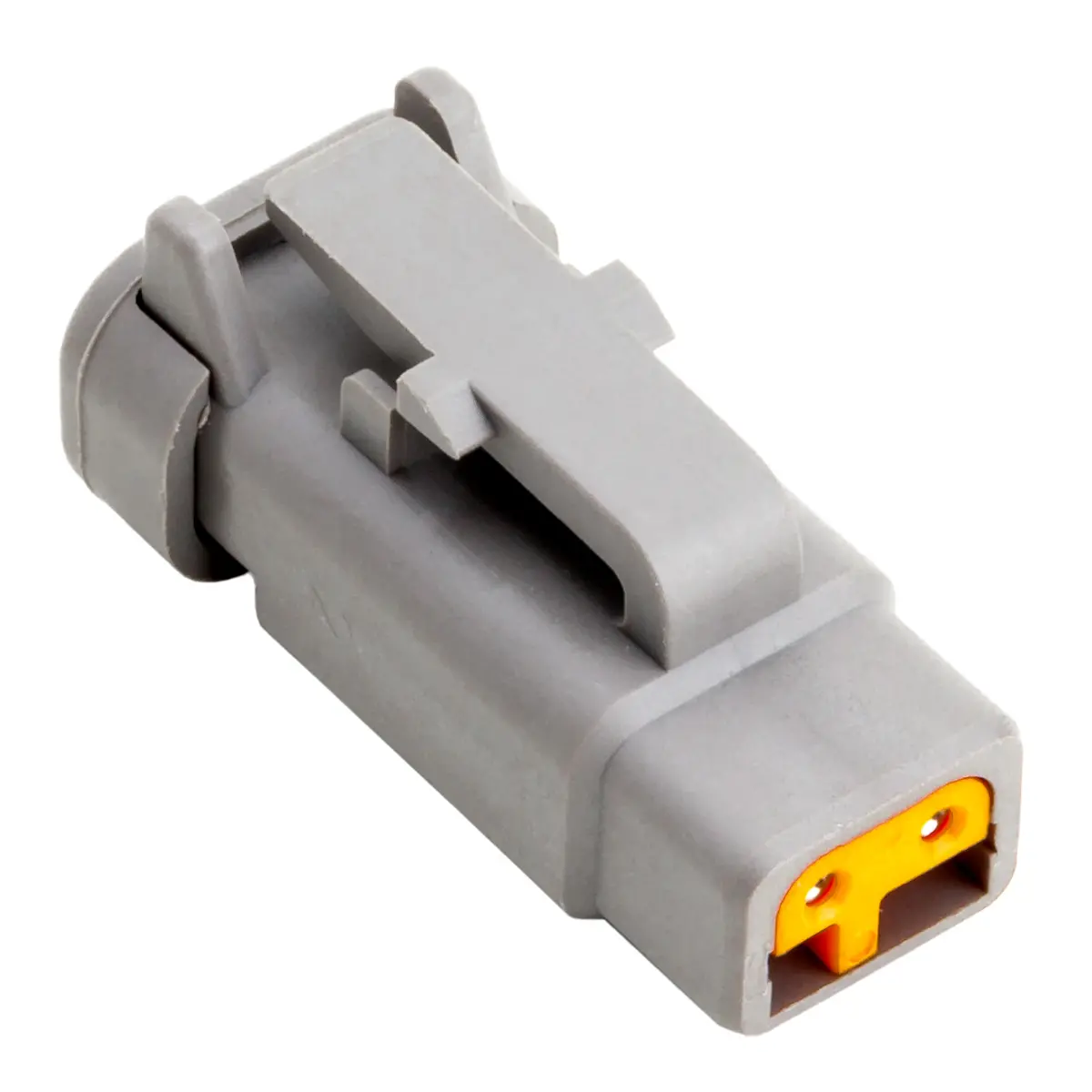

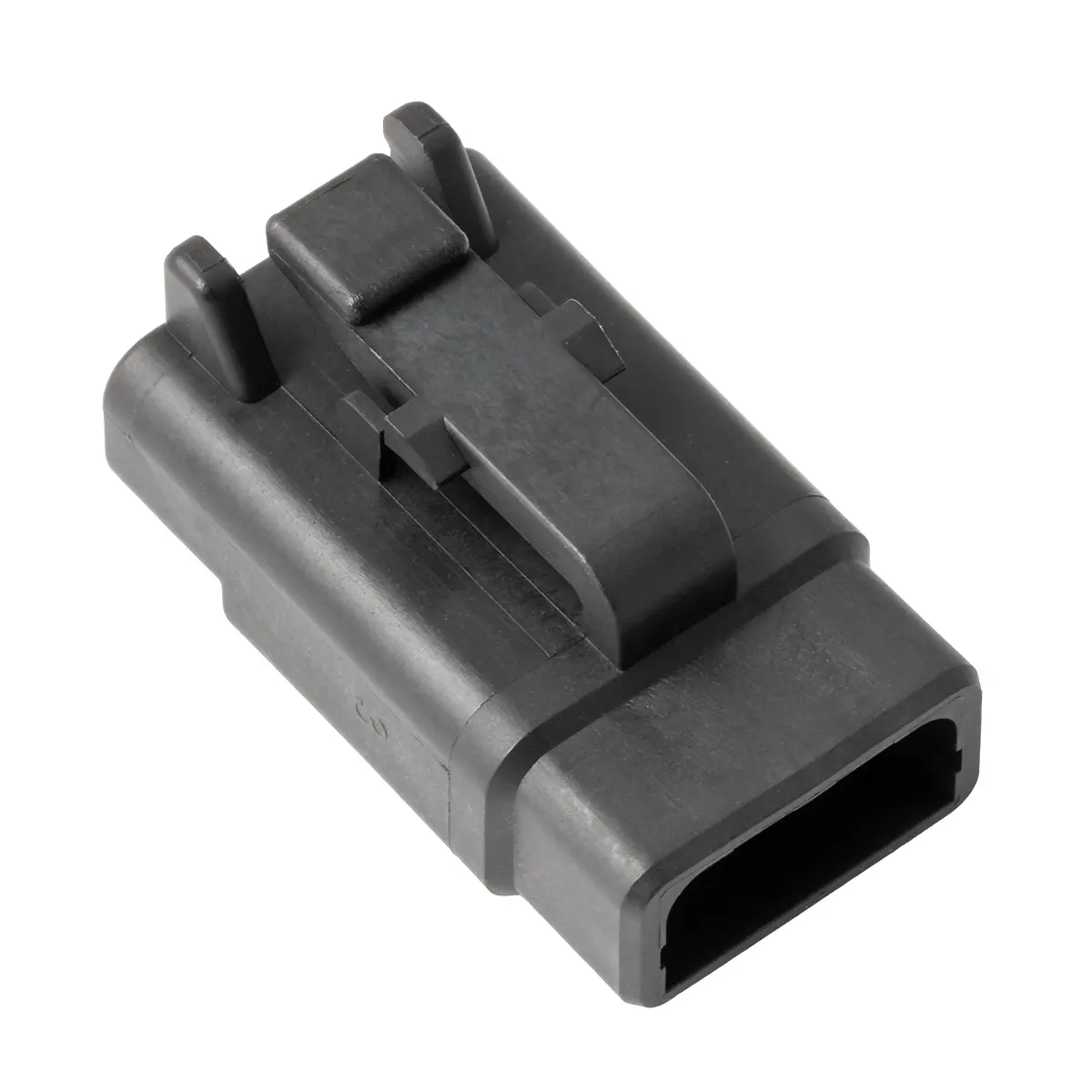

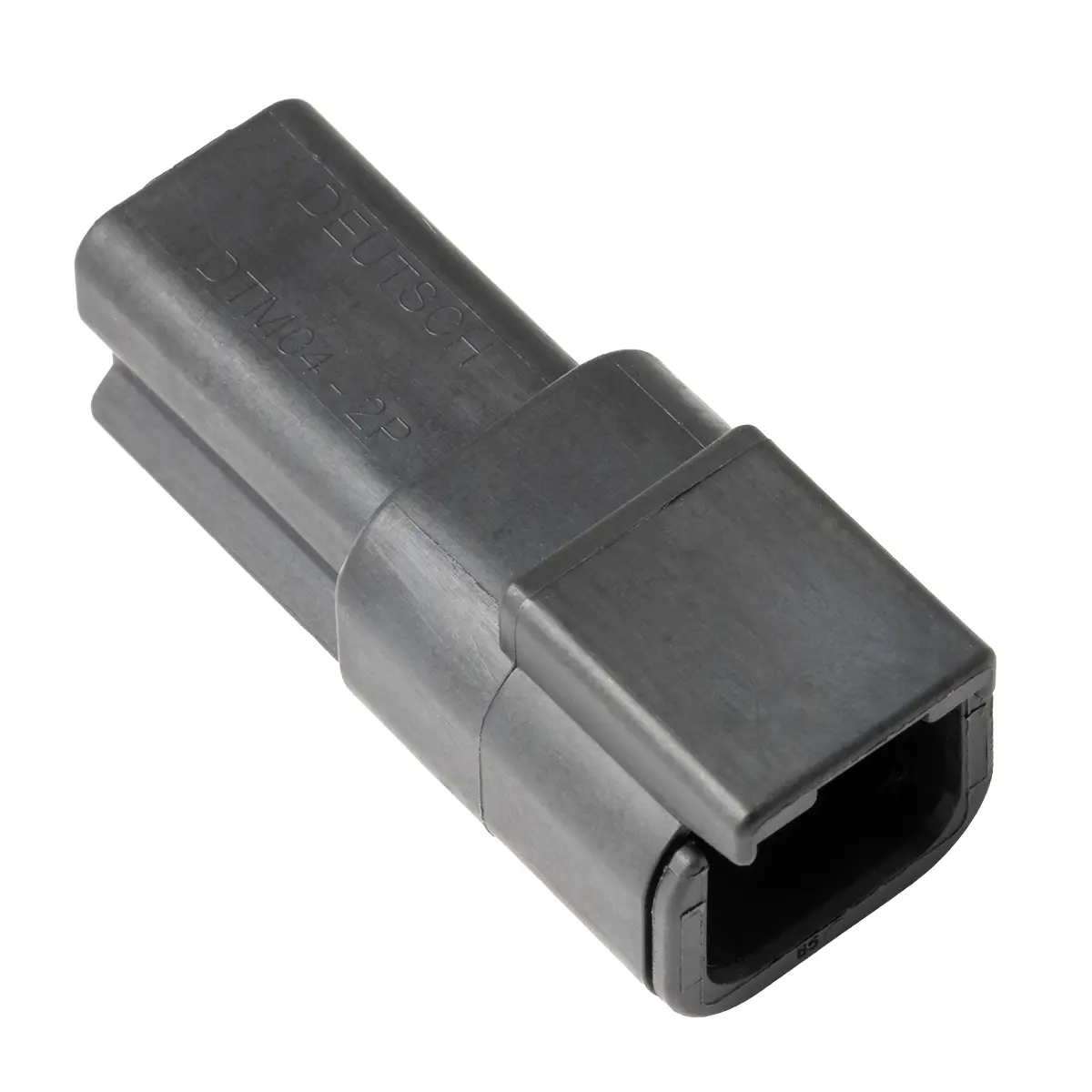

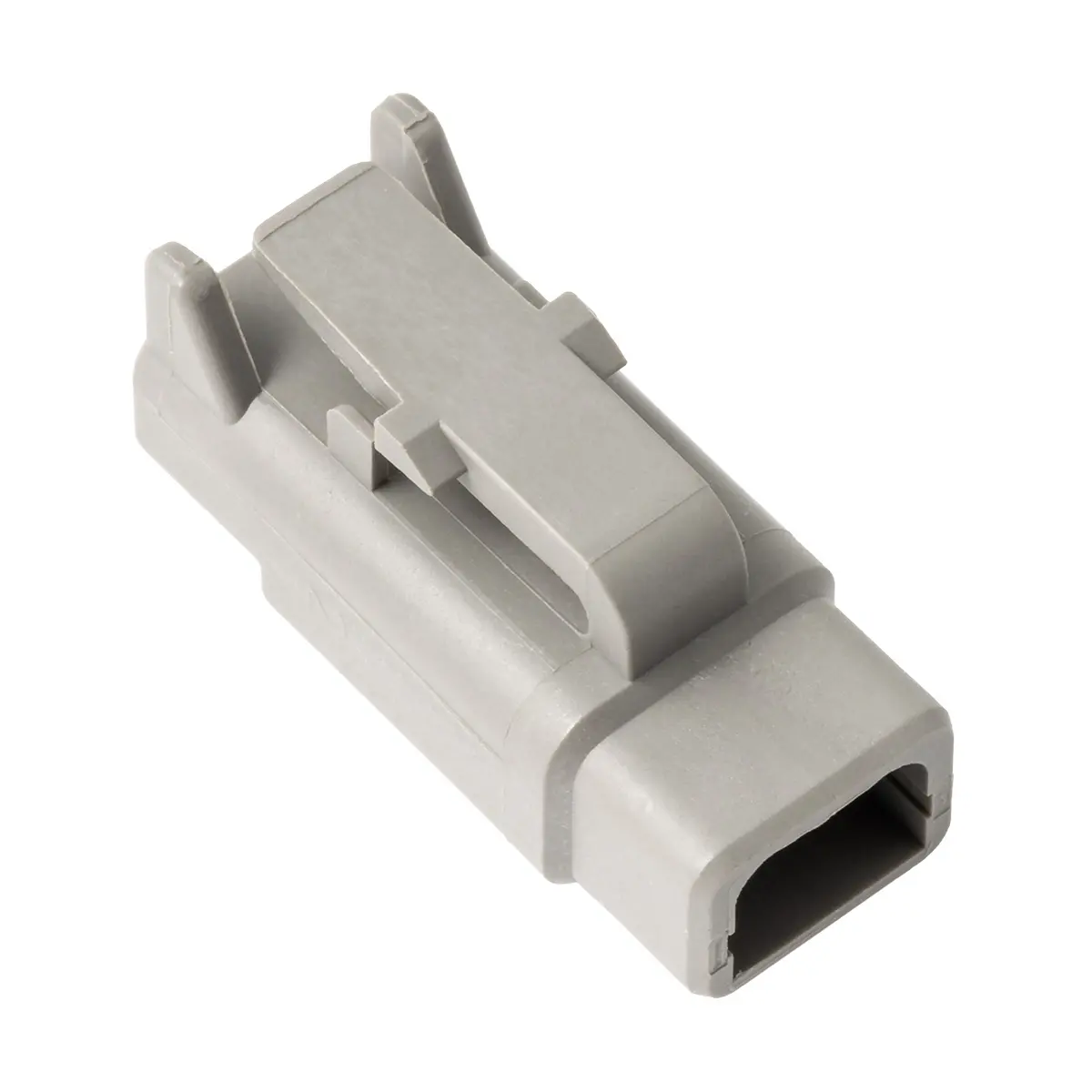

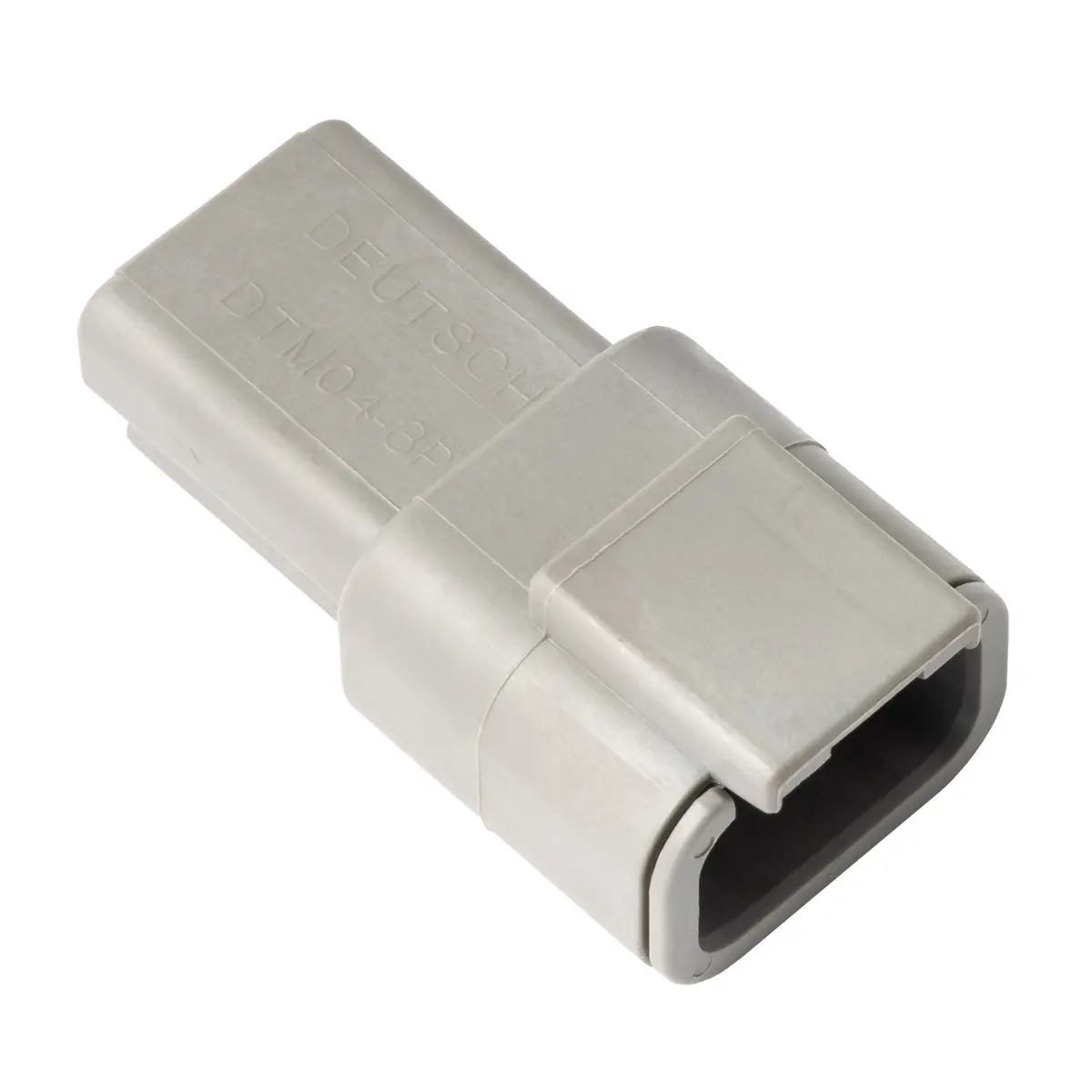

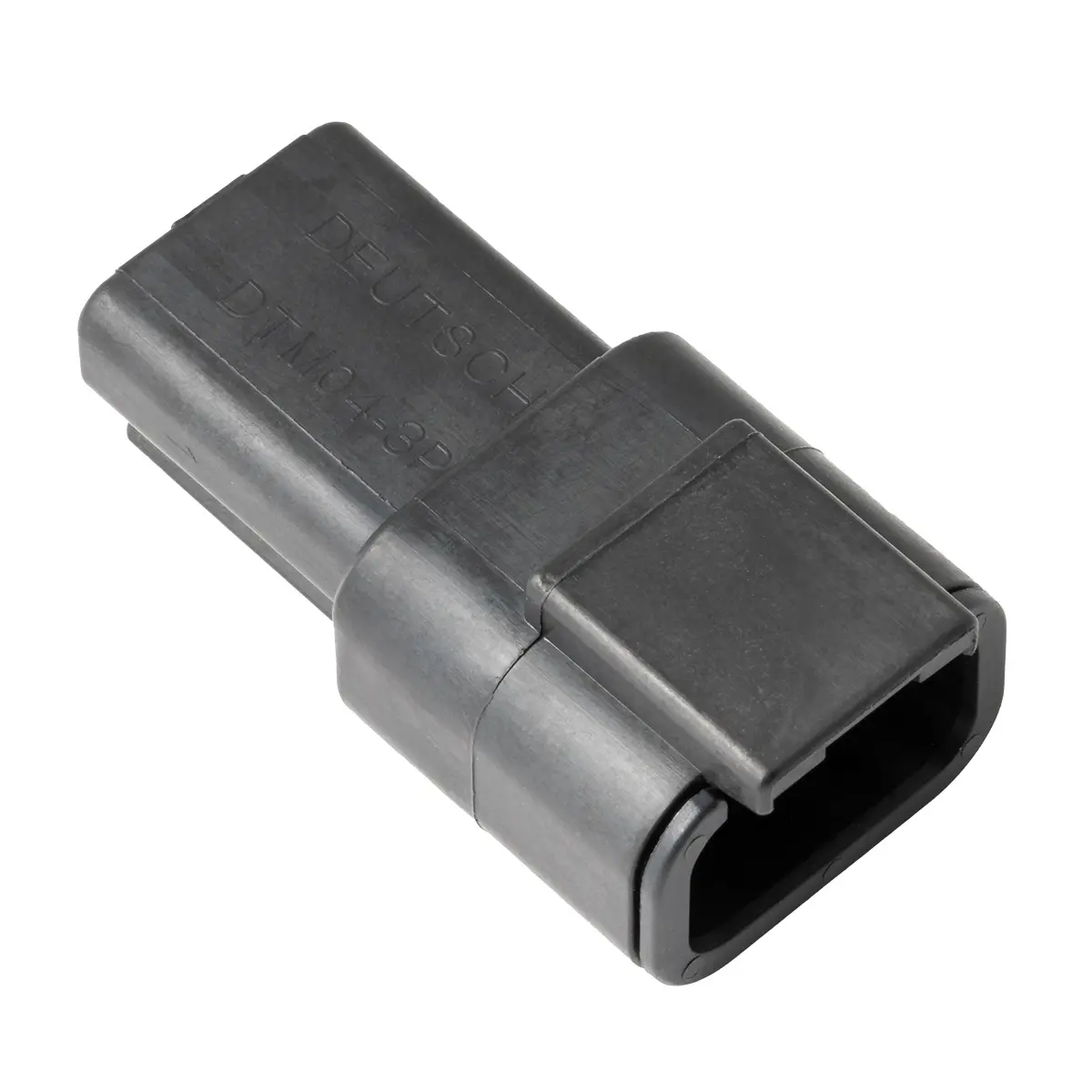

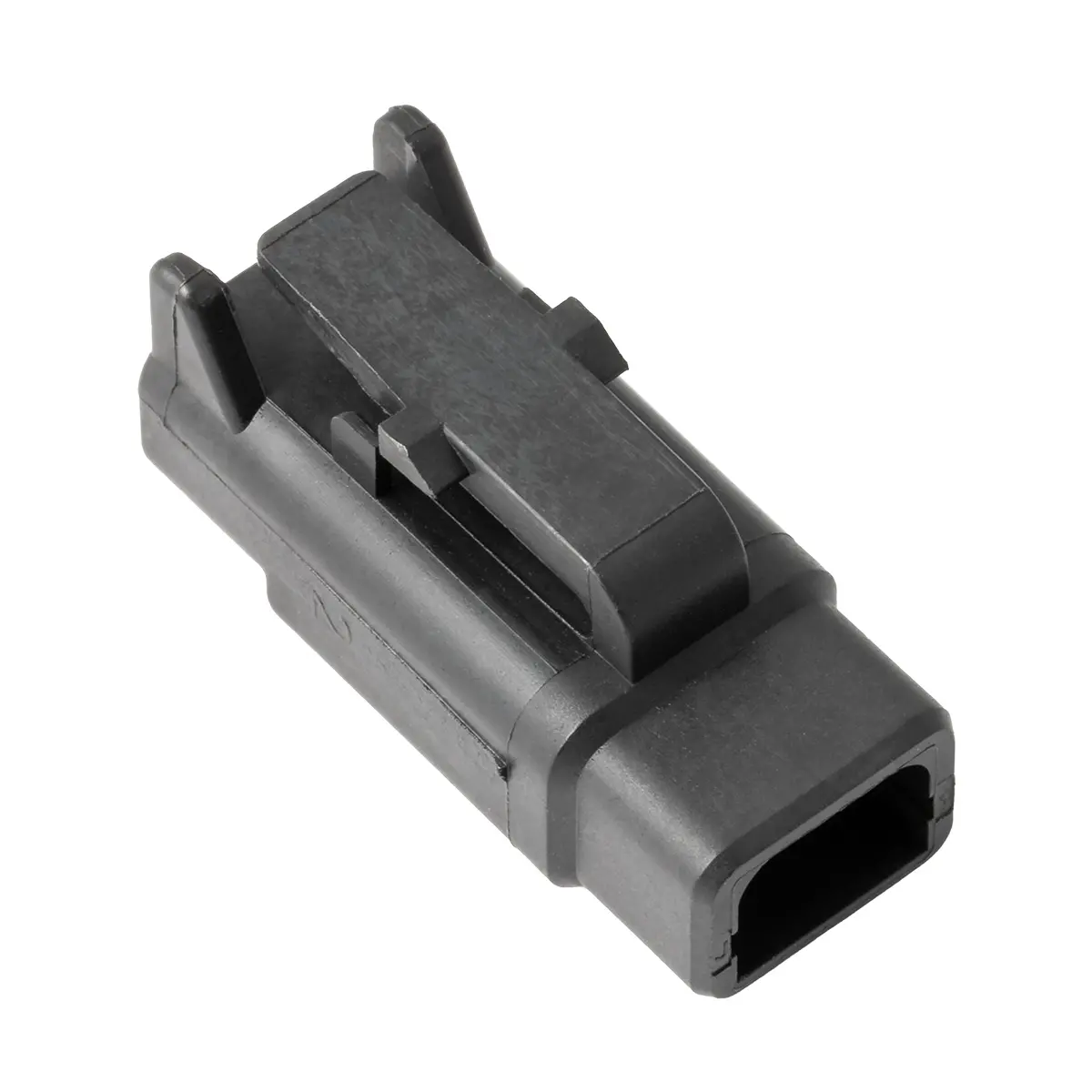

  DTM Connector Bodies:



  Description	Plugs		Receptacles
  	Part No.	Color	Part No.	Color

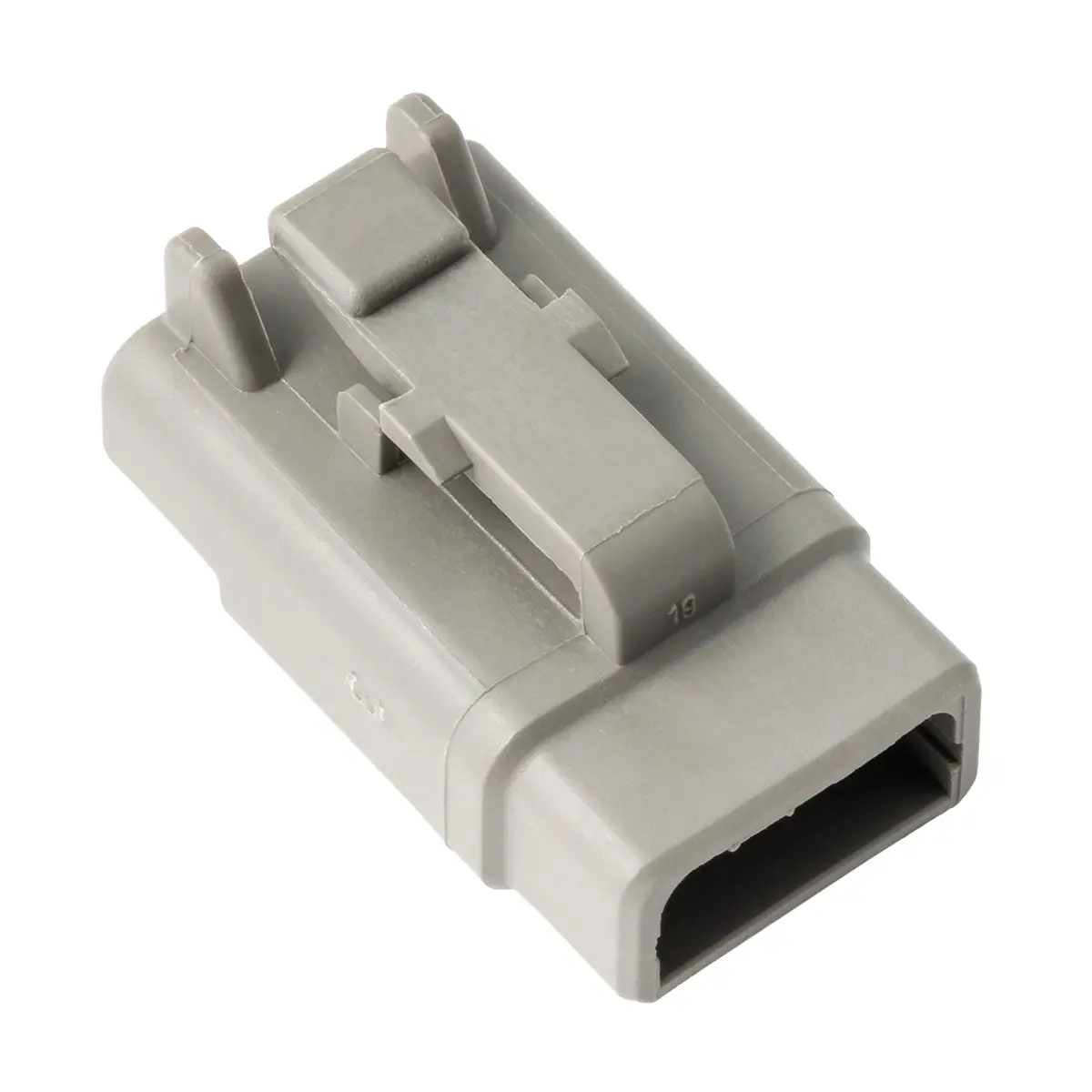

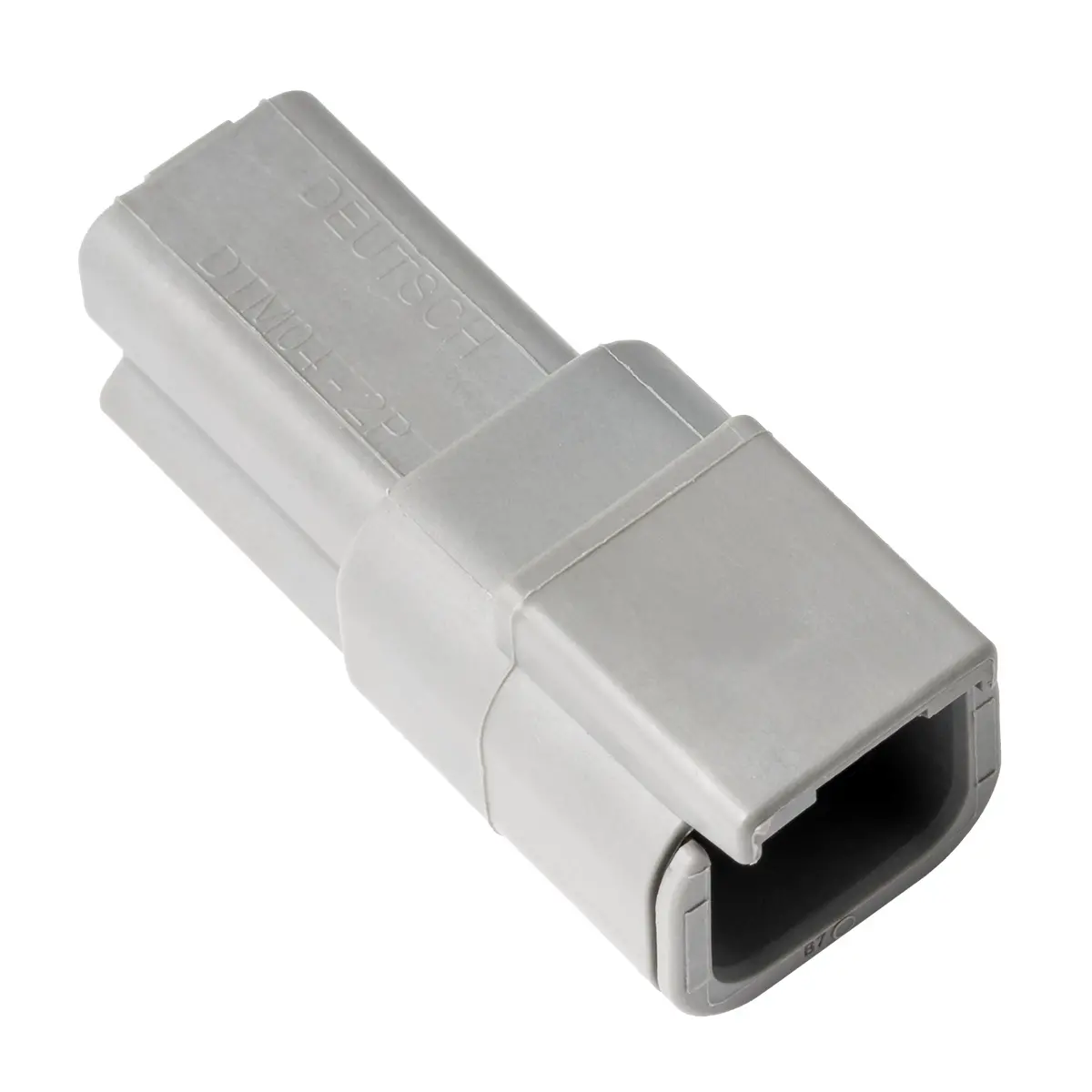

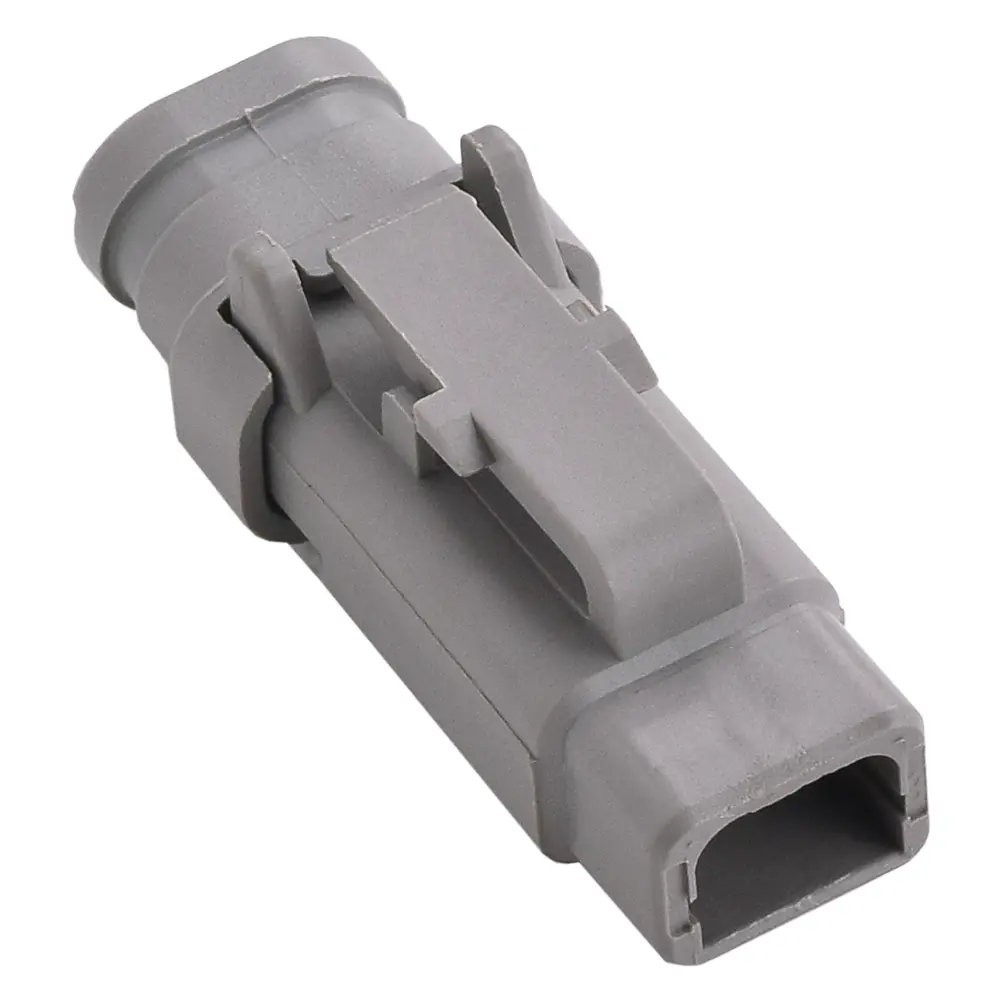

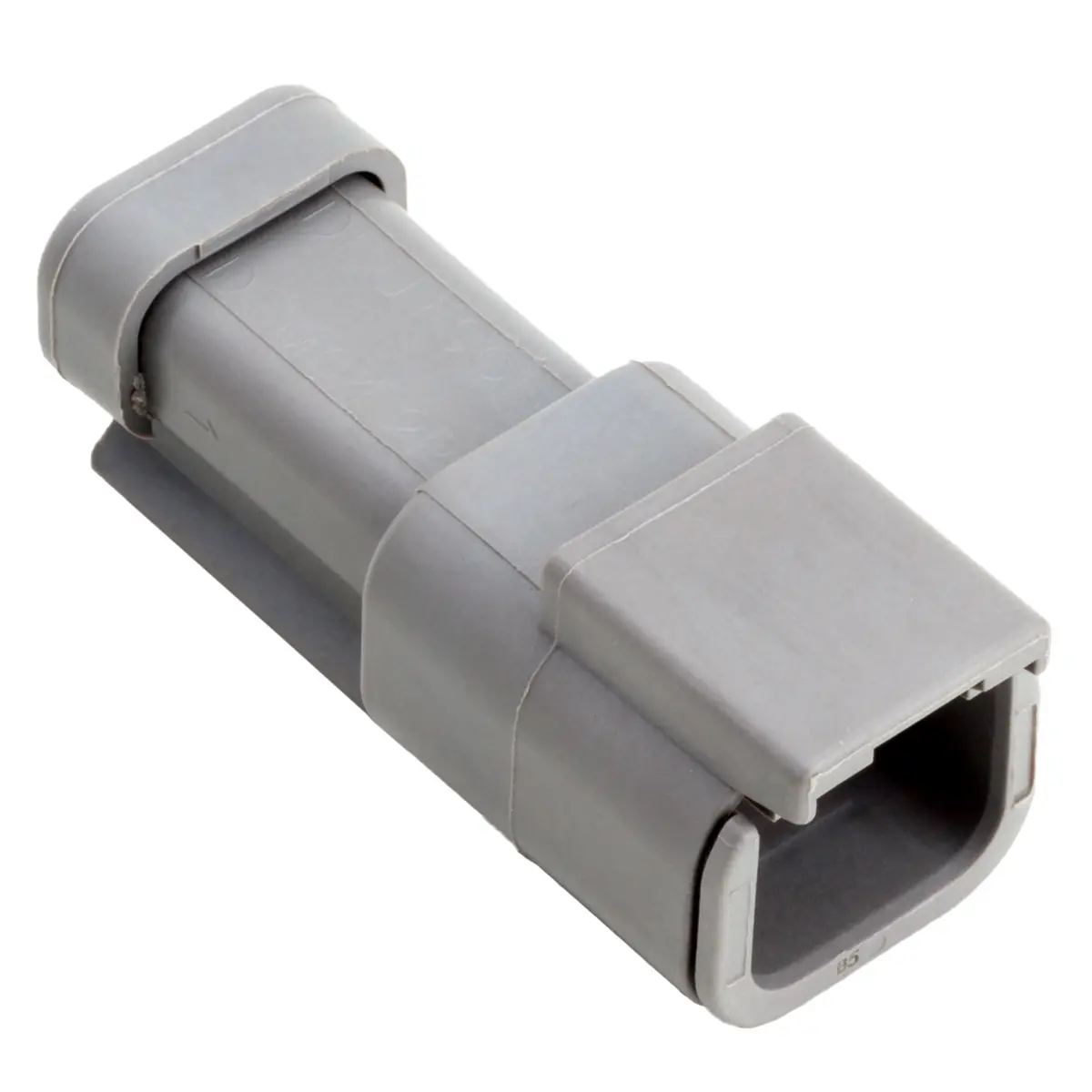

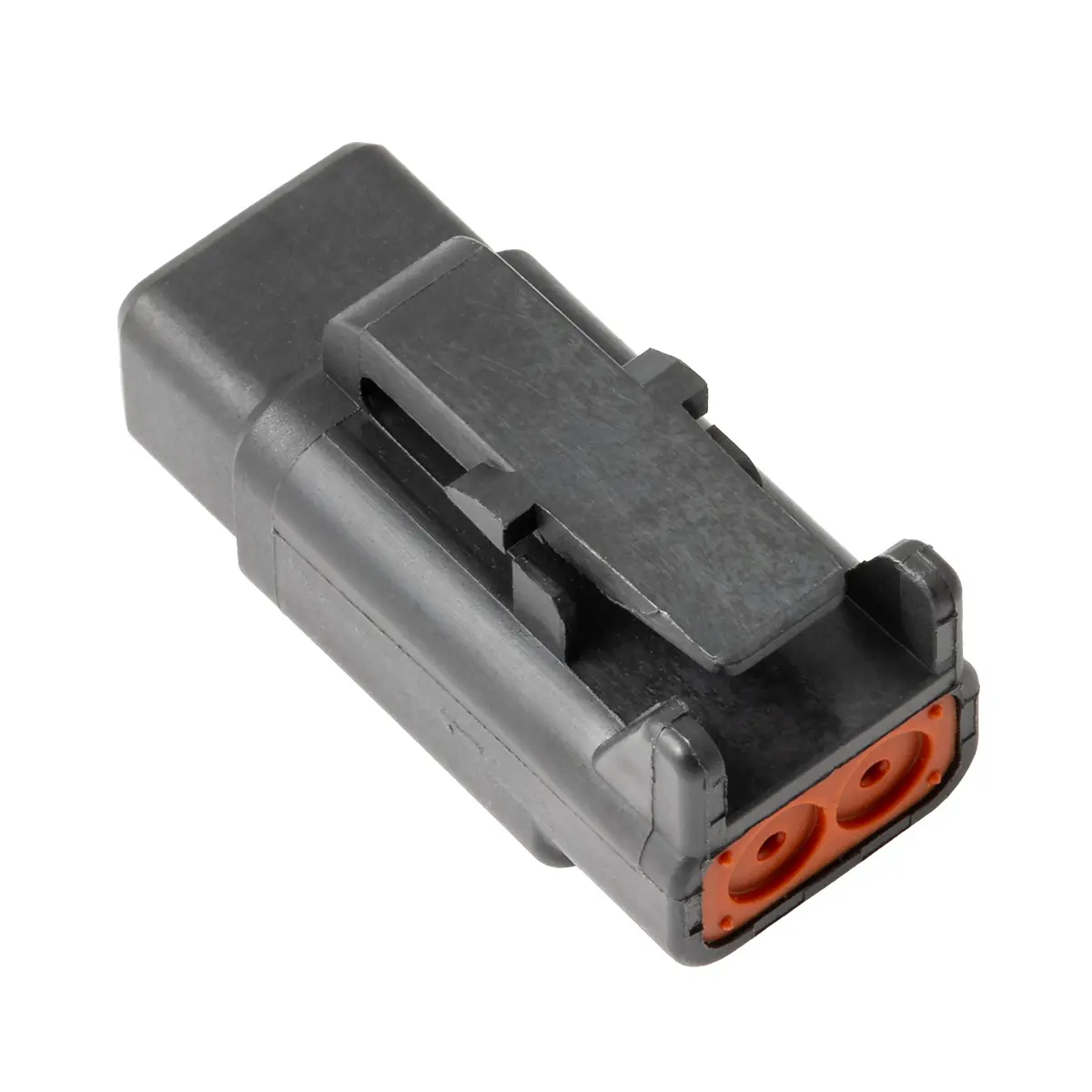

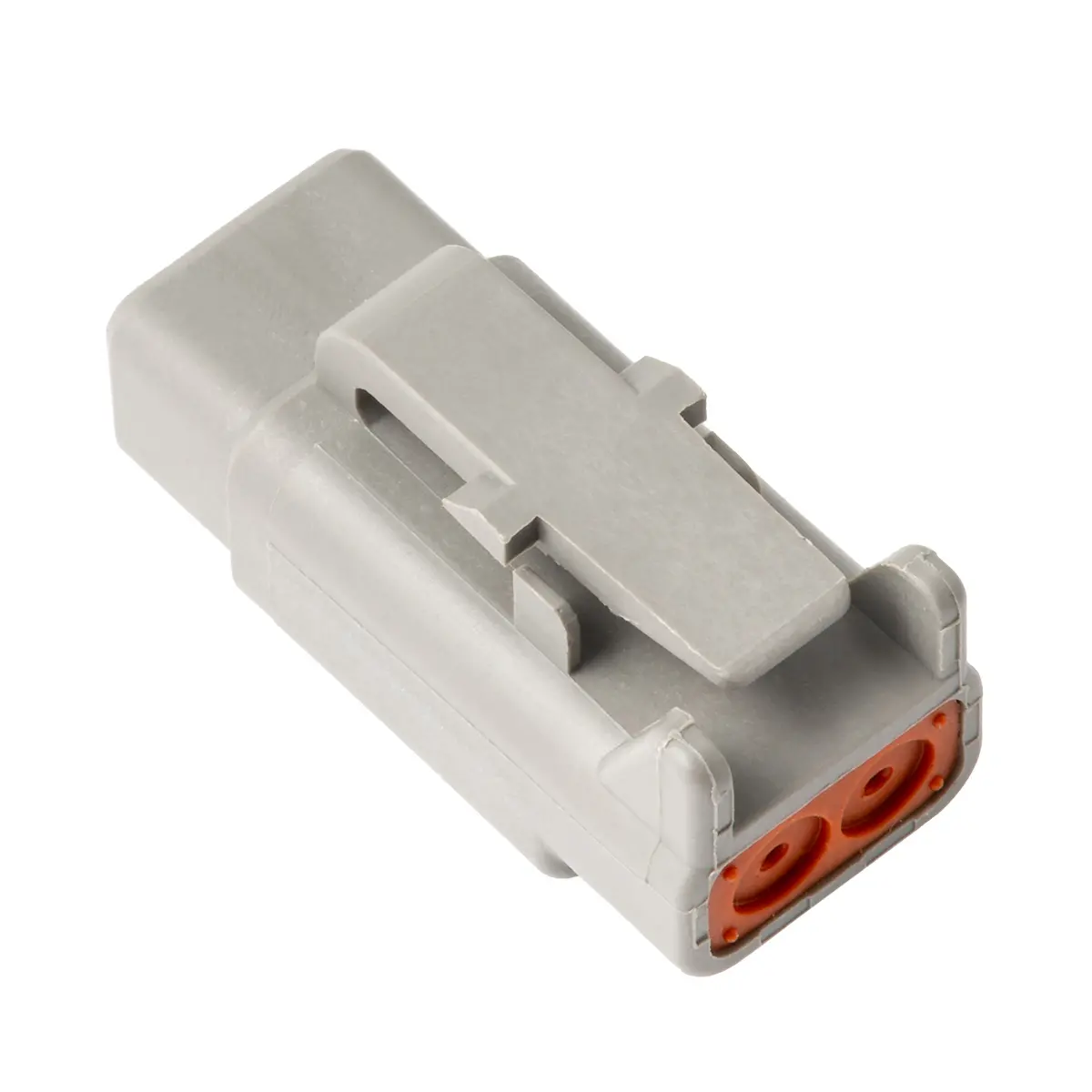

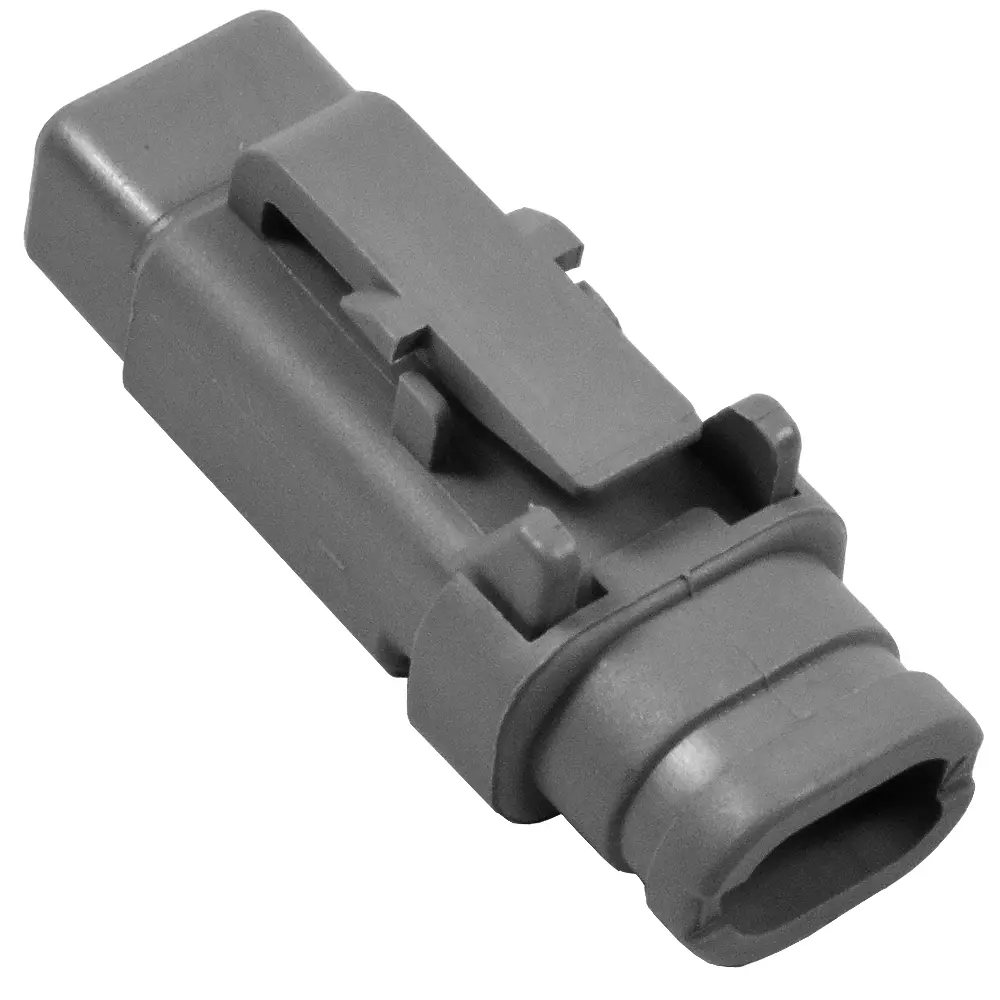

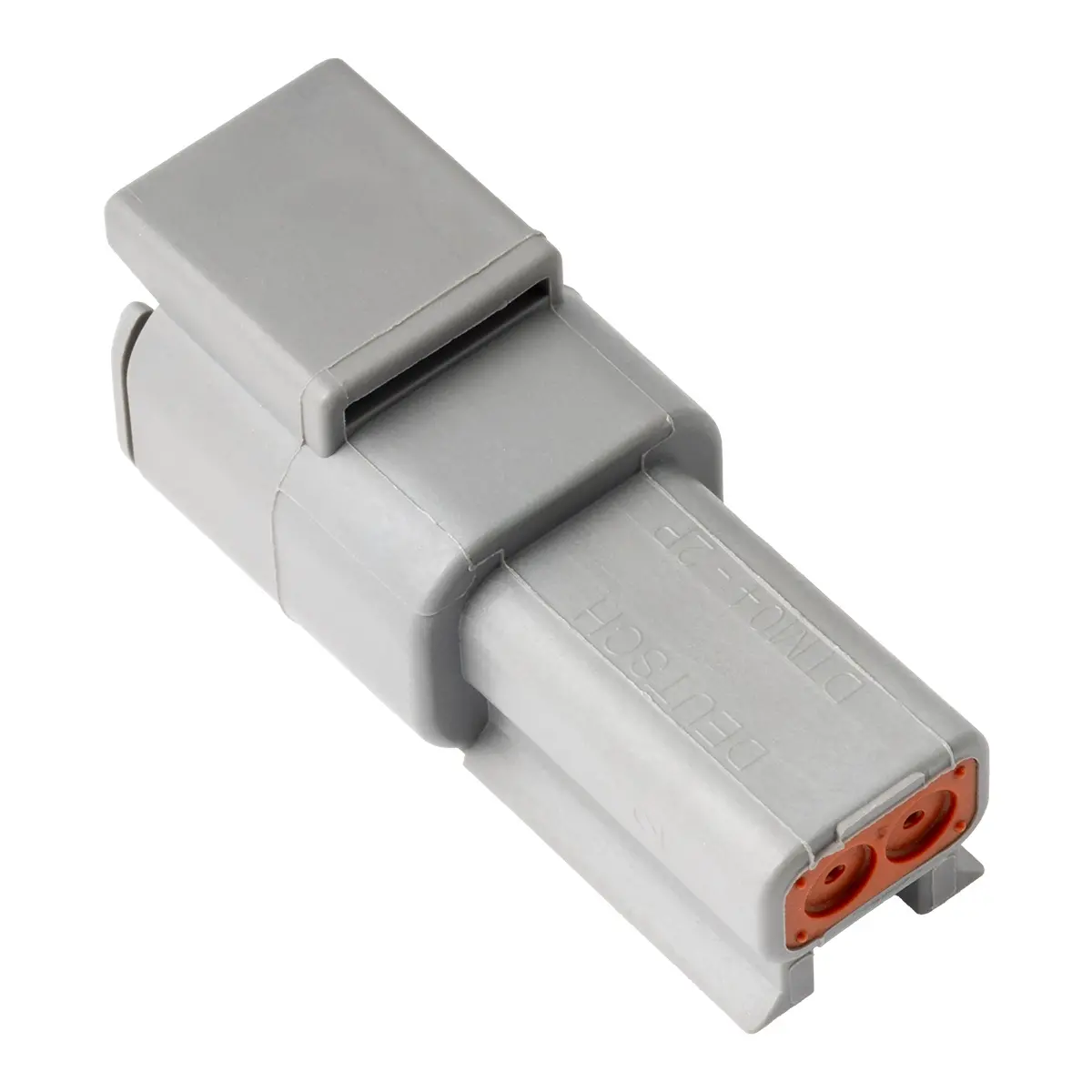

  2-Way	DTM06-2S	Gray	DTM04-2P	Gray

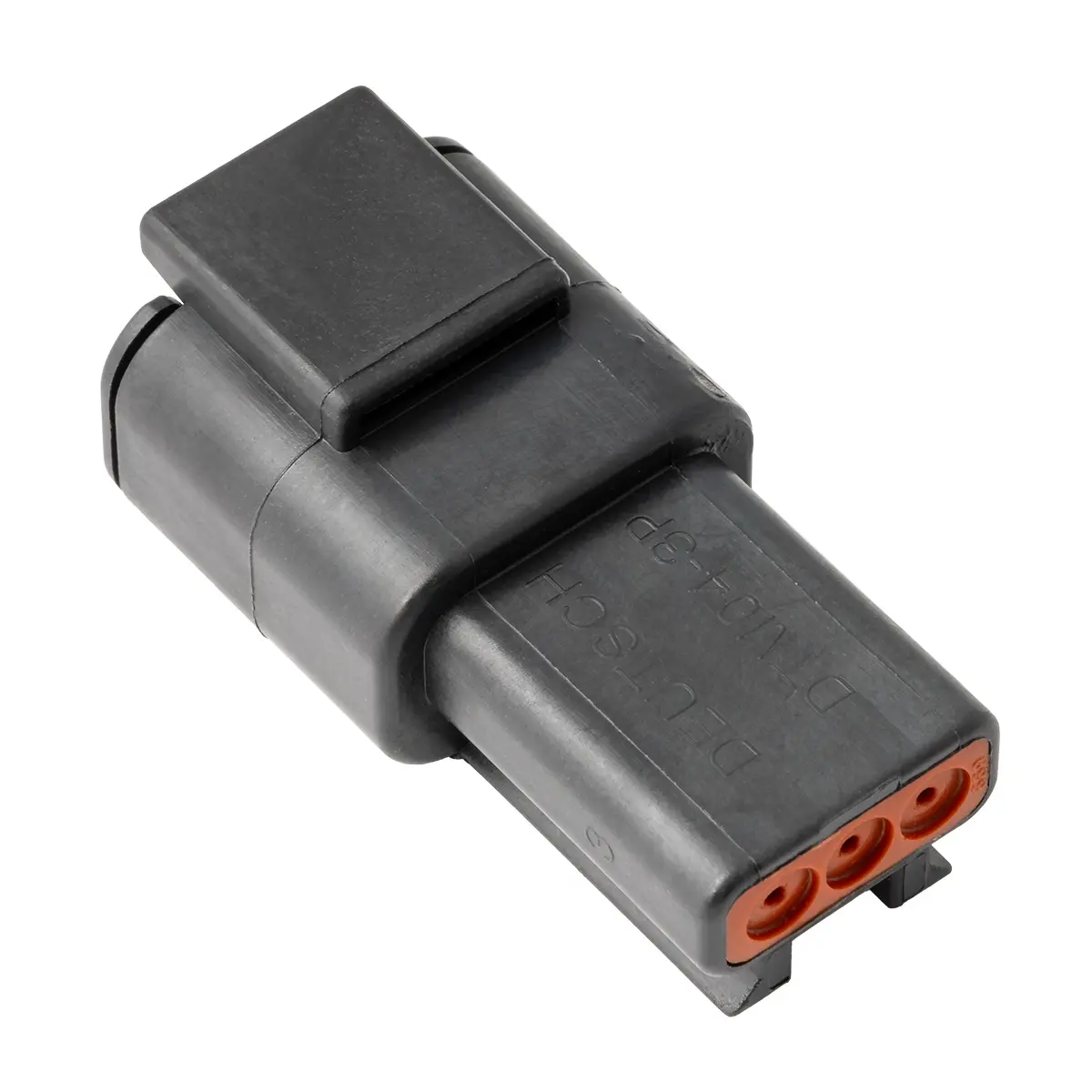

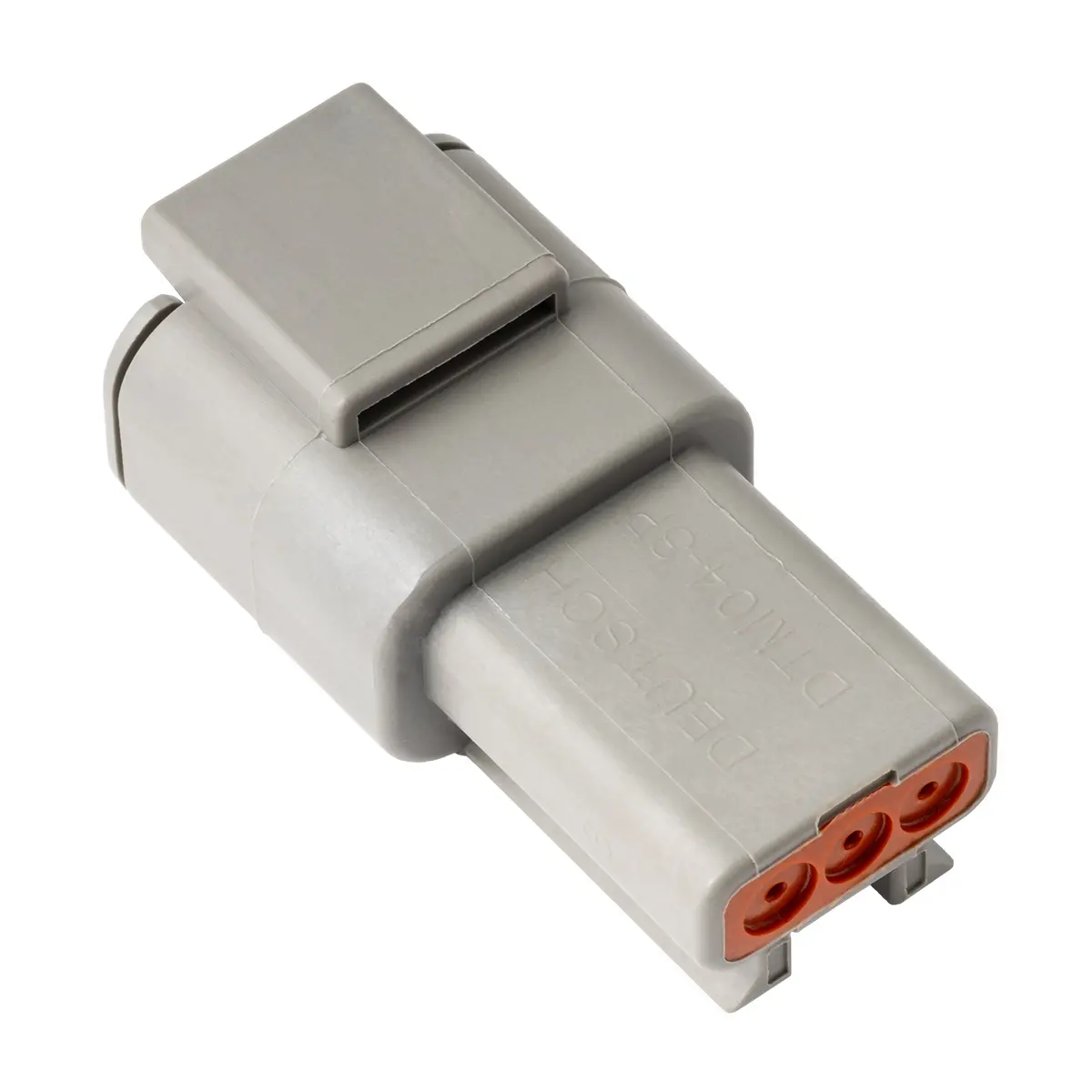

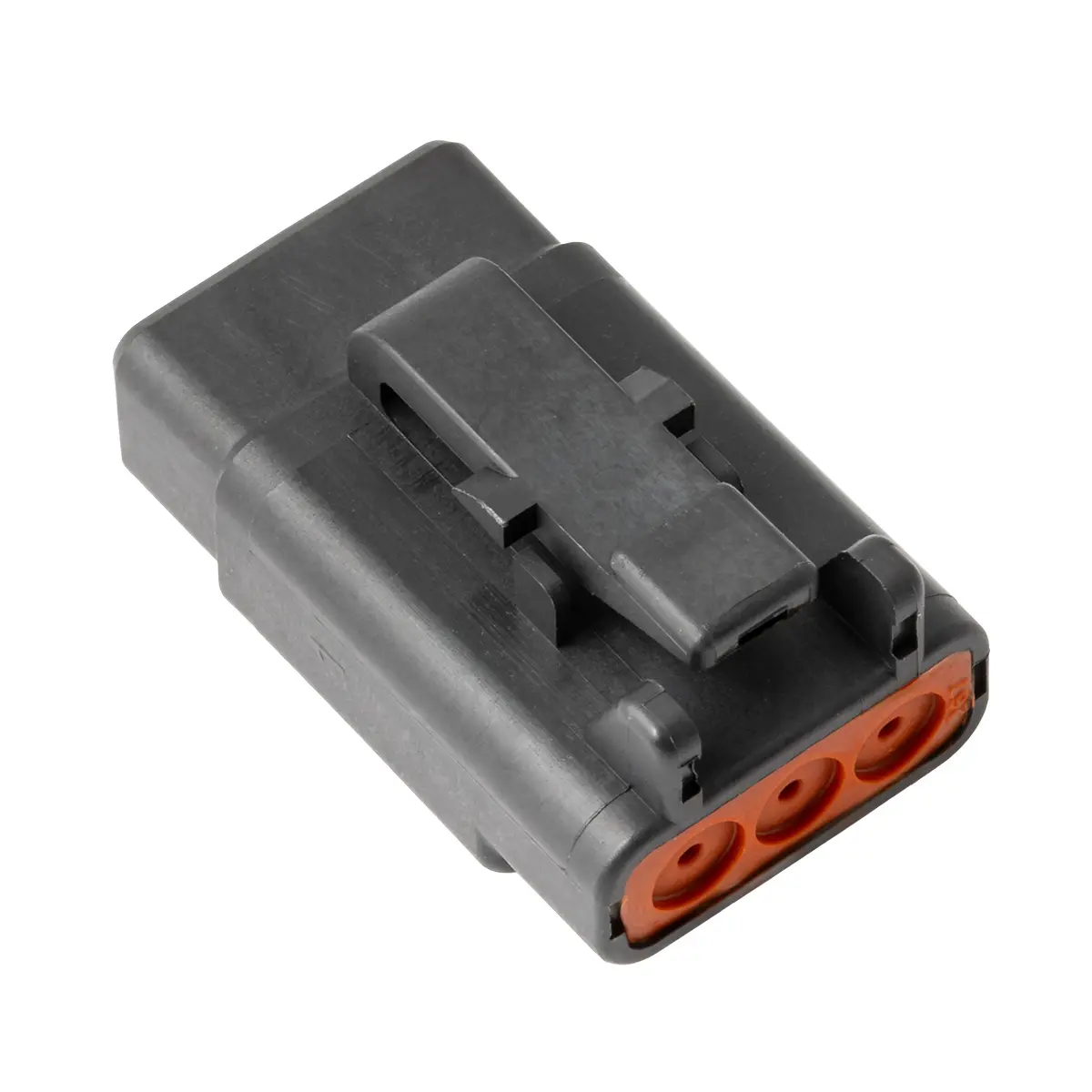

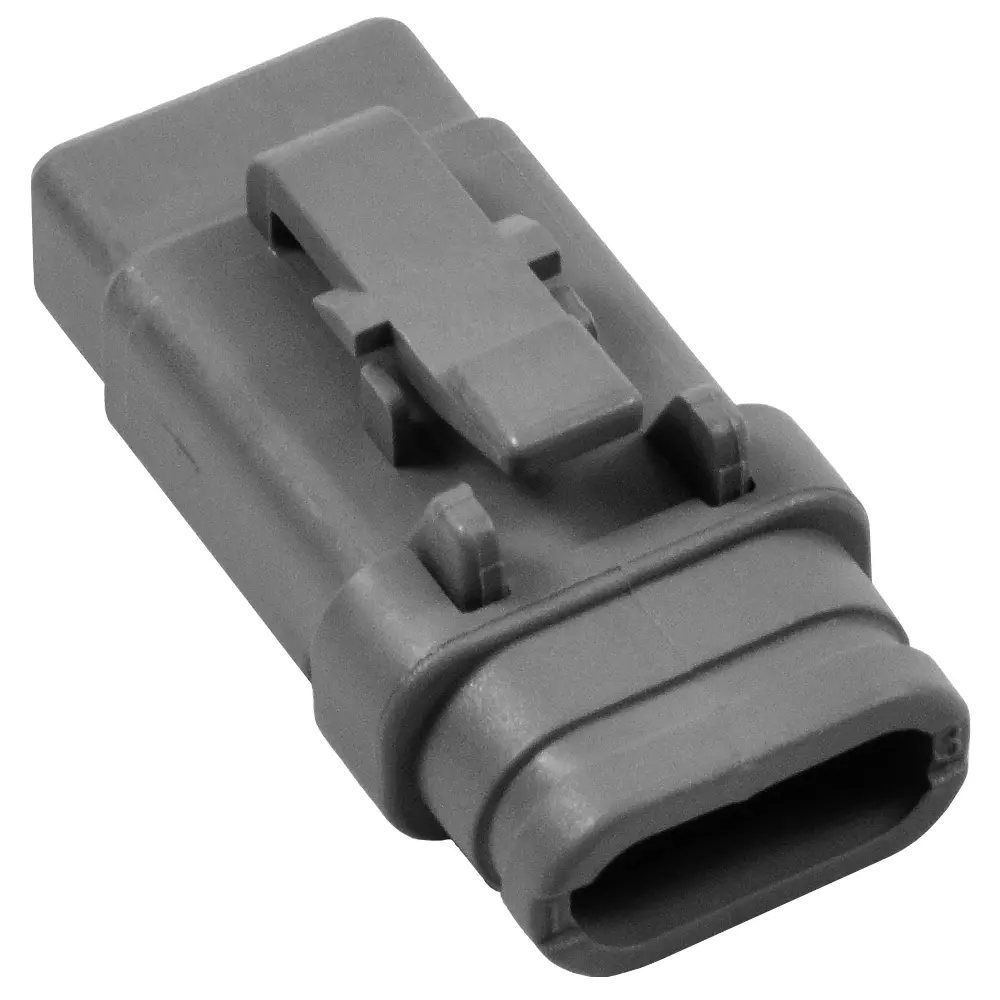

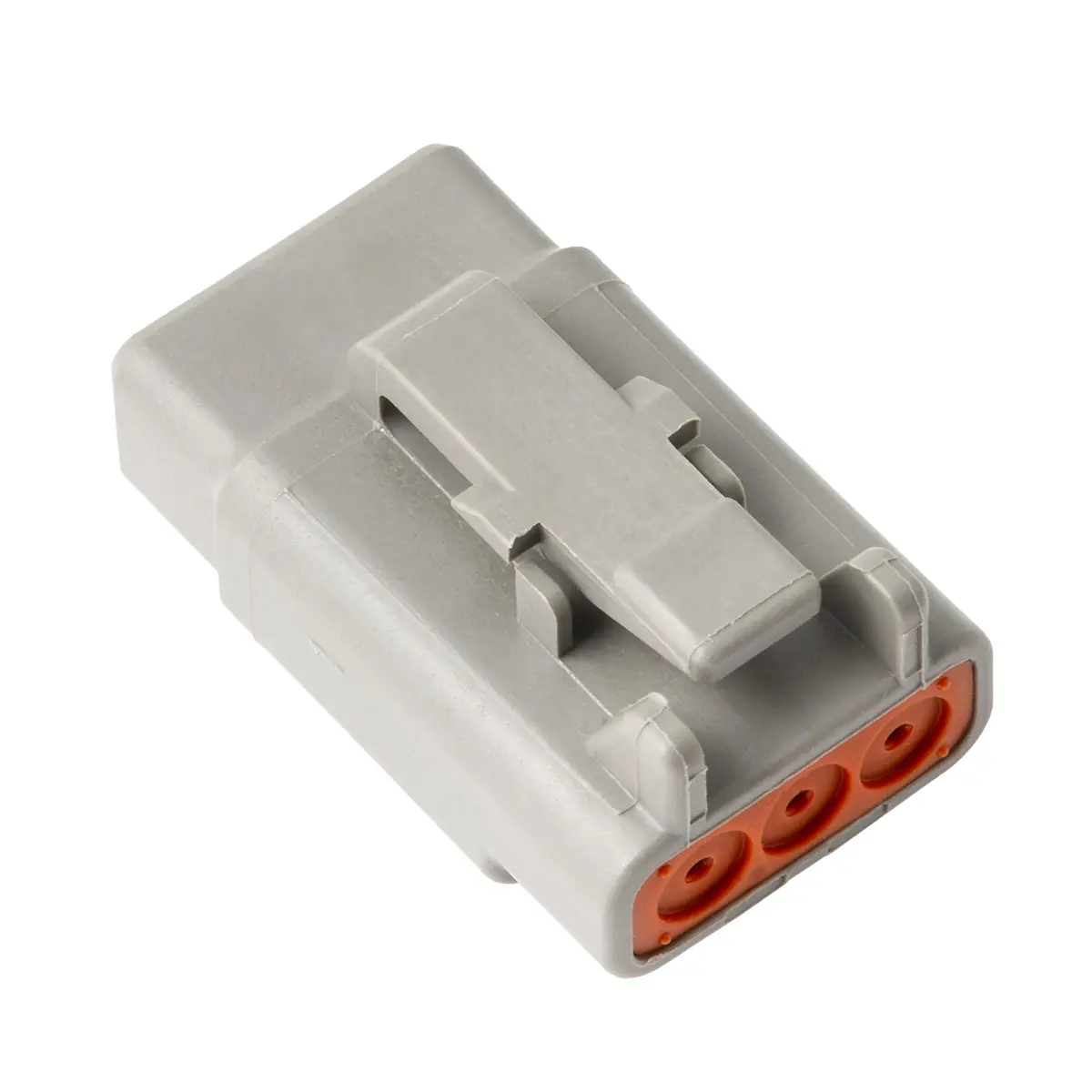

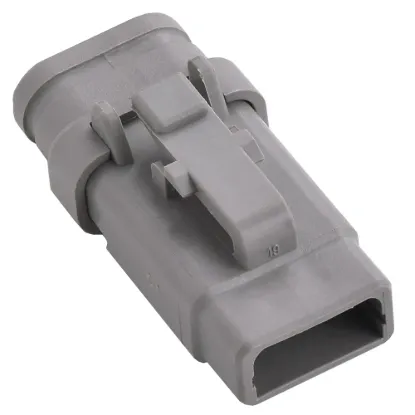

  3-Way	DTM06-3S	Gray	DTM04-3P	Gray

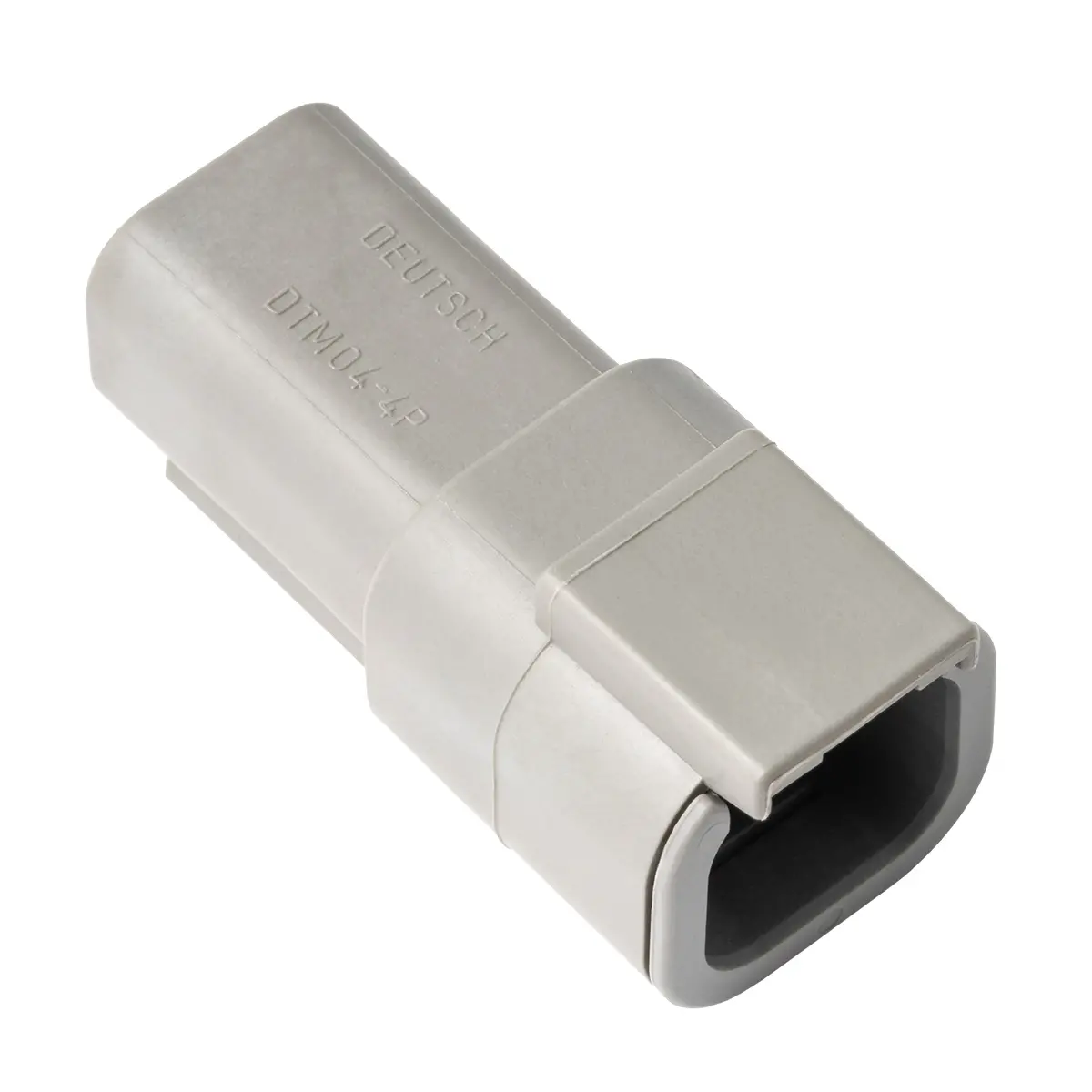

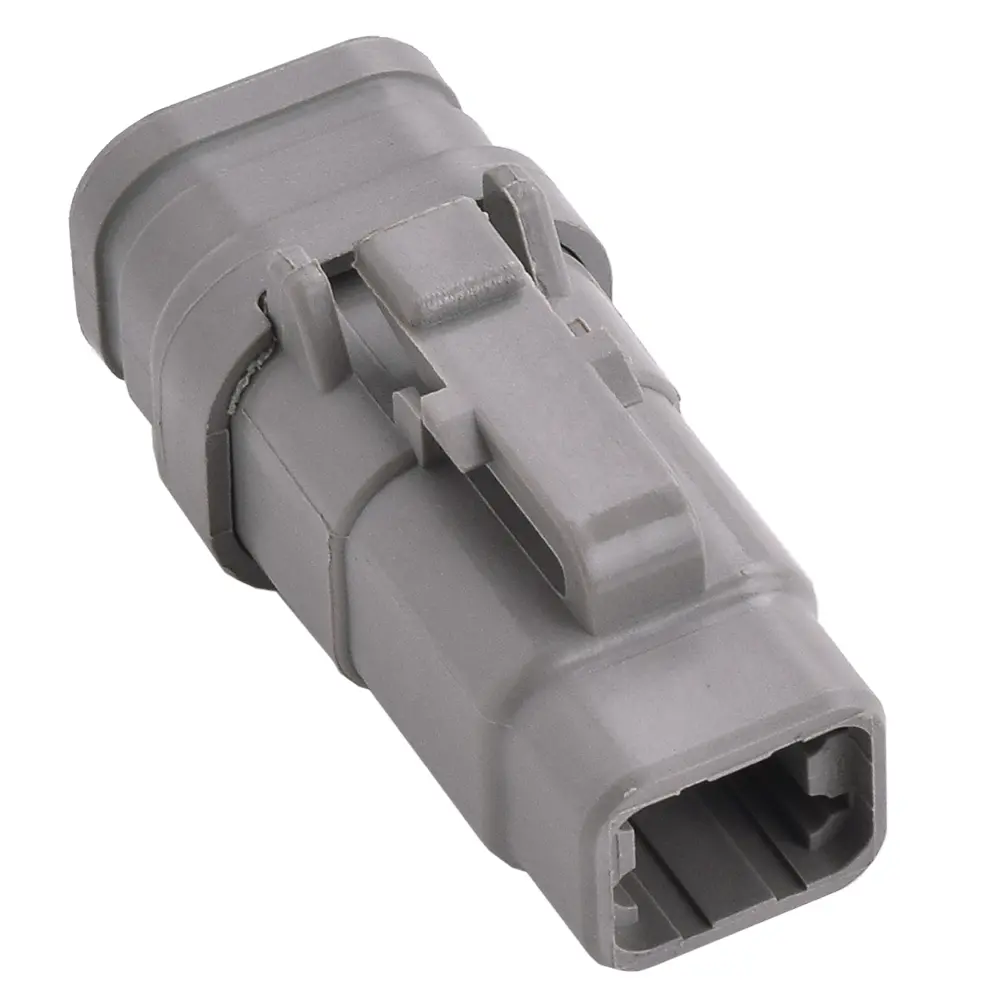

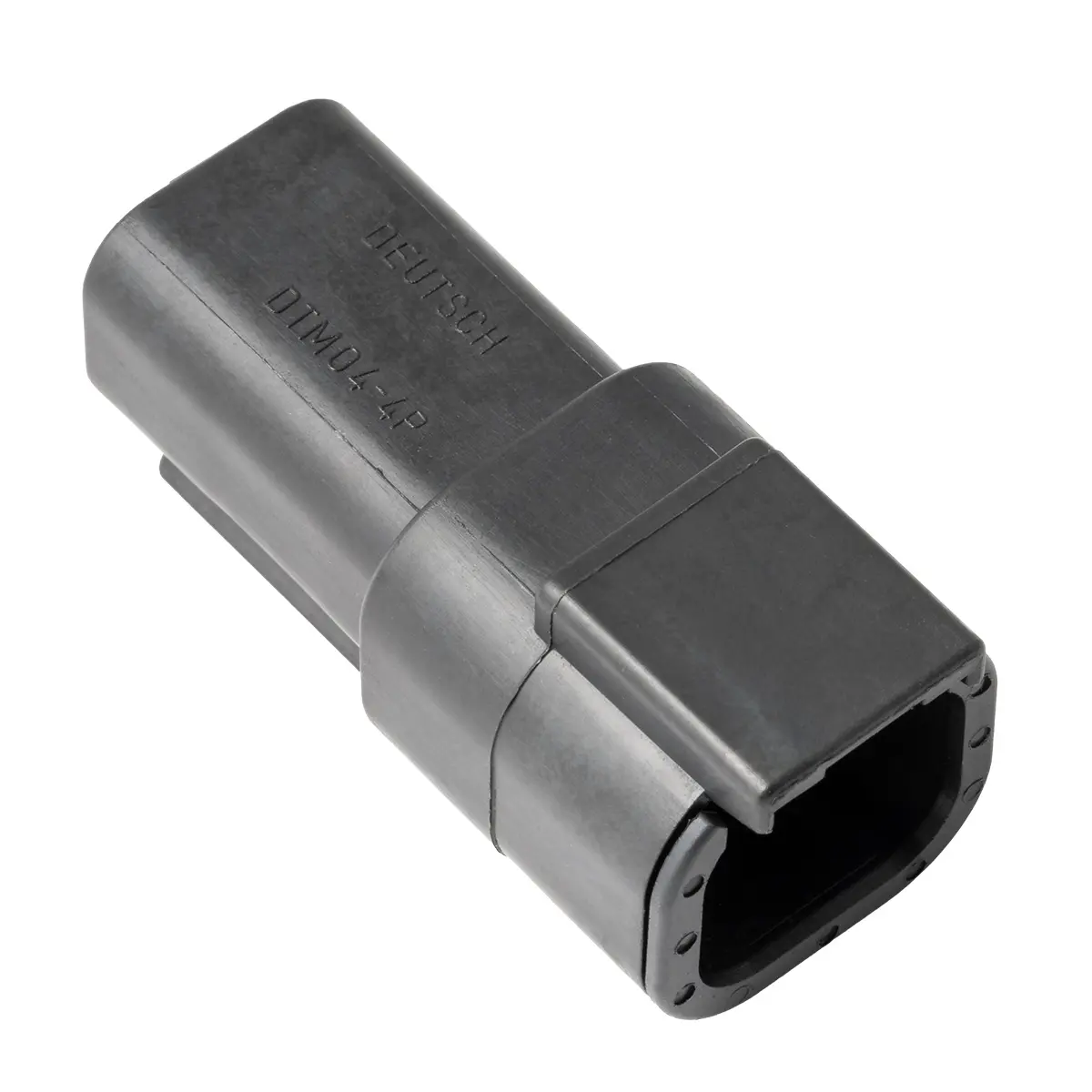

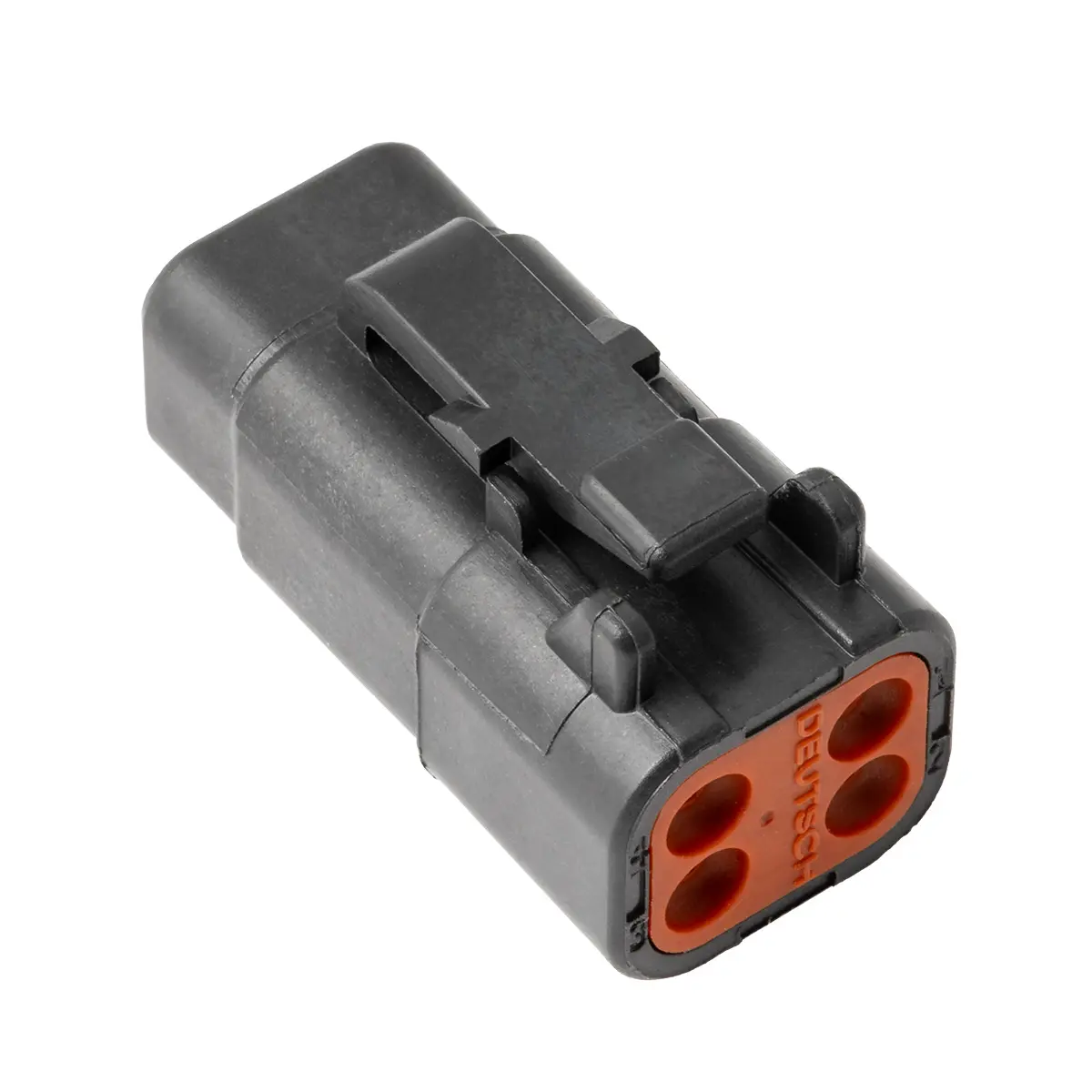

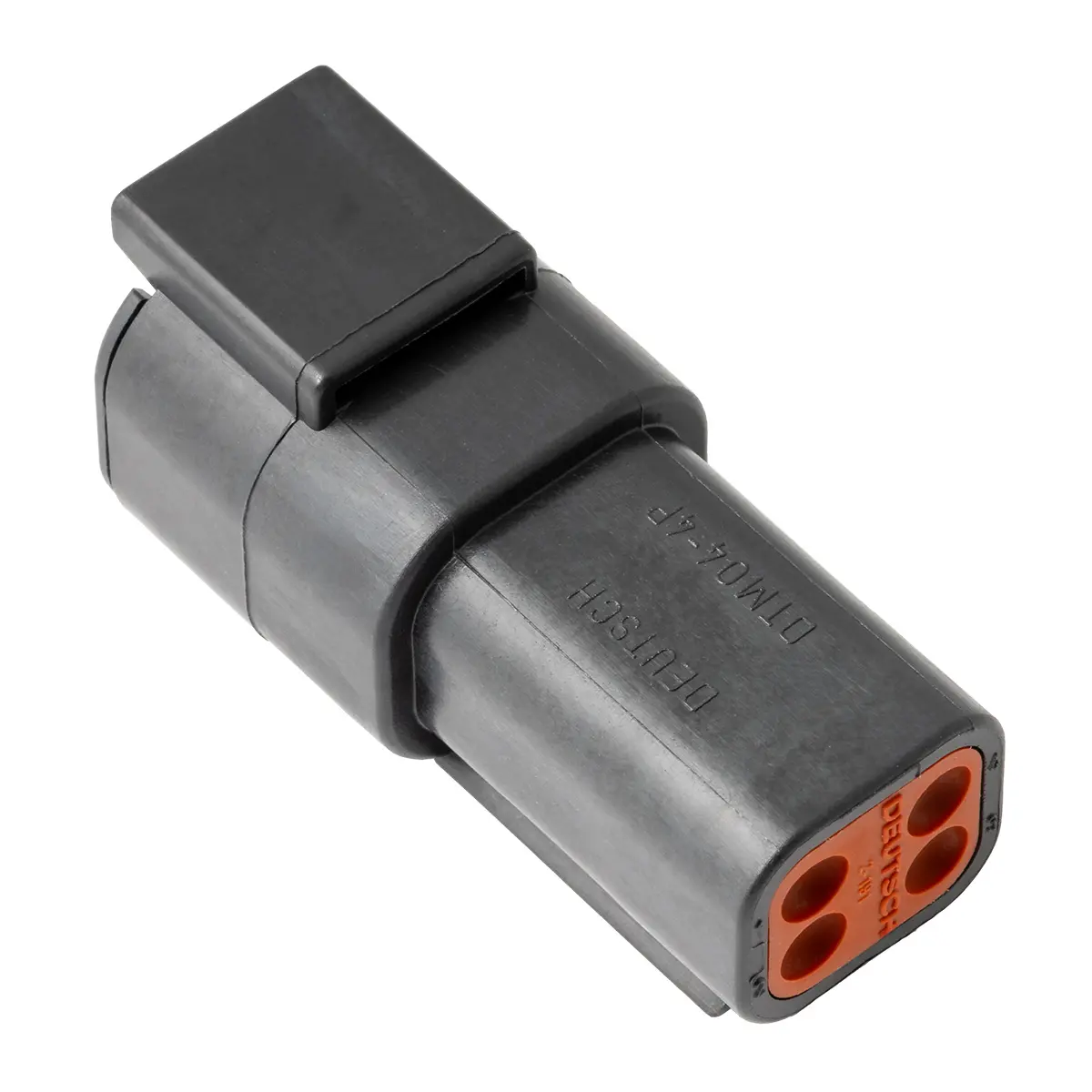

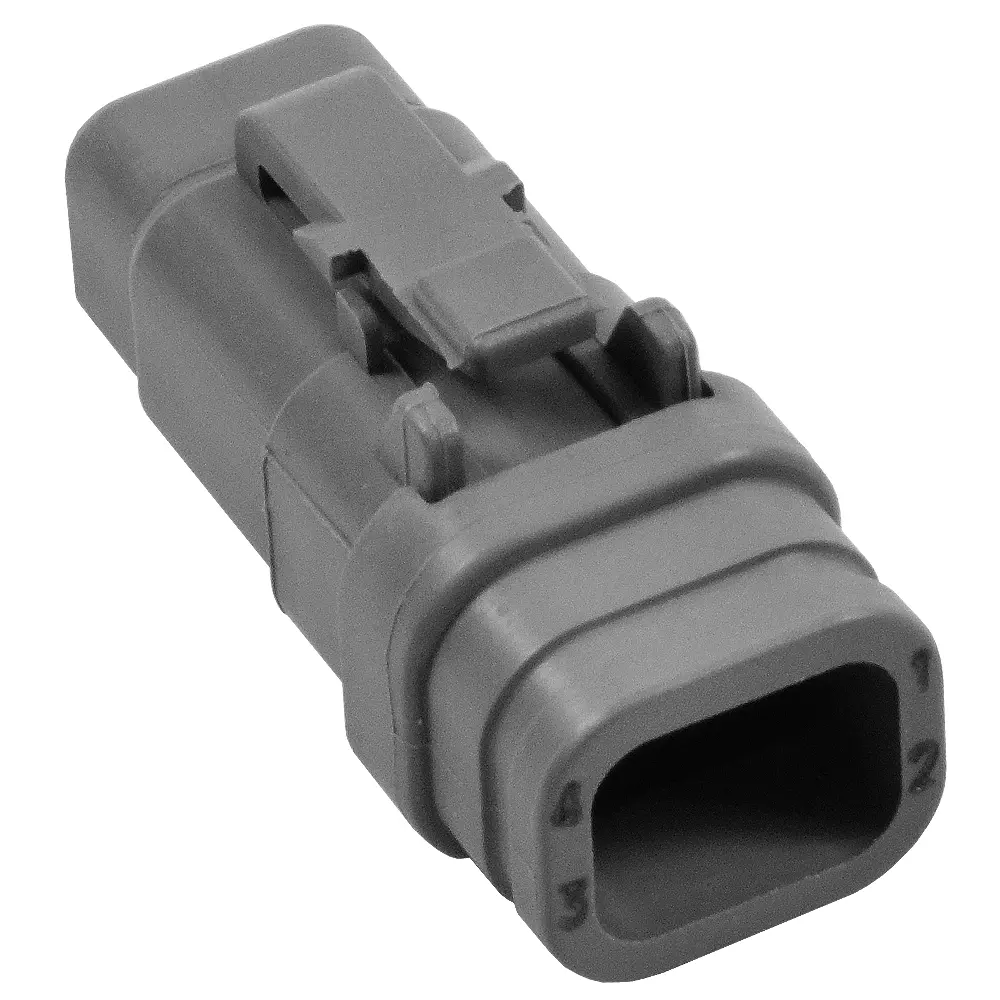

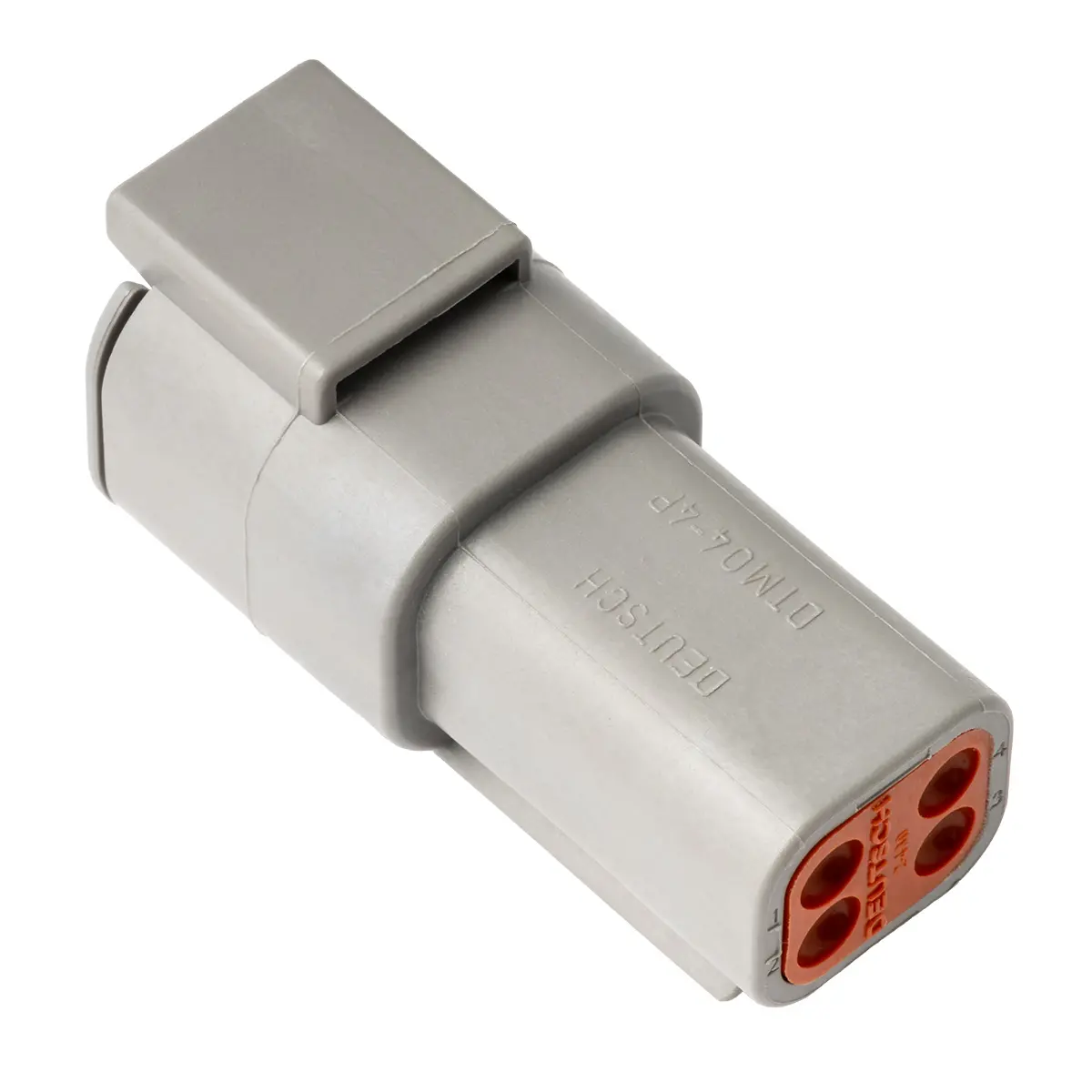

  4-Way	DTM06-4S	Gray	DTM04-4P	Gray

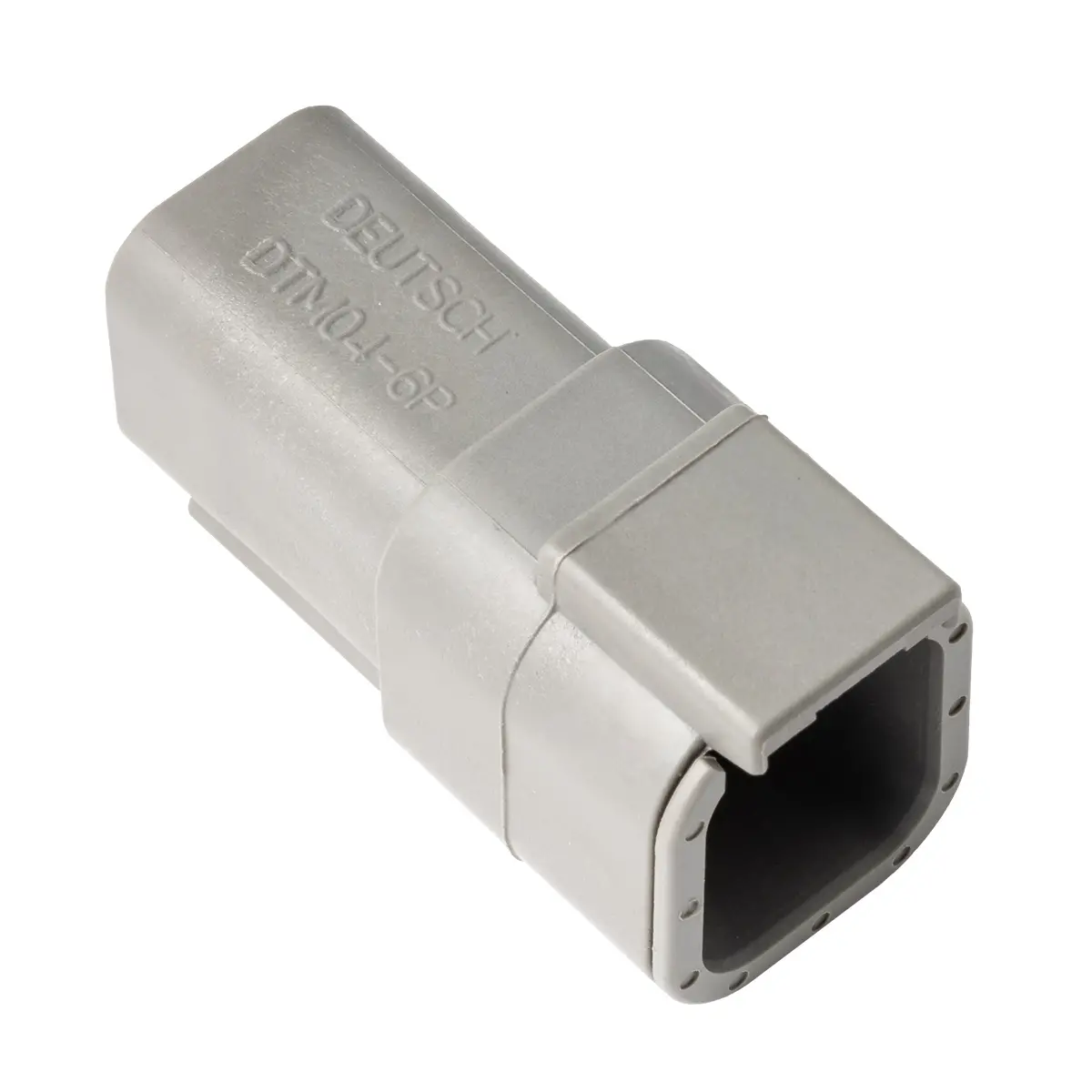

  6-Way	DTM06-6S	Gray	DTM04-6P	Gray
  8- Way	DTM06-08SA	Gray	DTM04-08PA	Gray
  12-Way	DTM06-12SA	Gray	DTM04-12PA	Gray

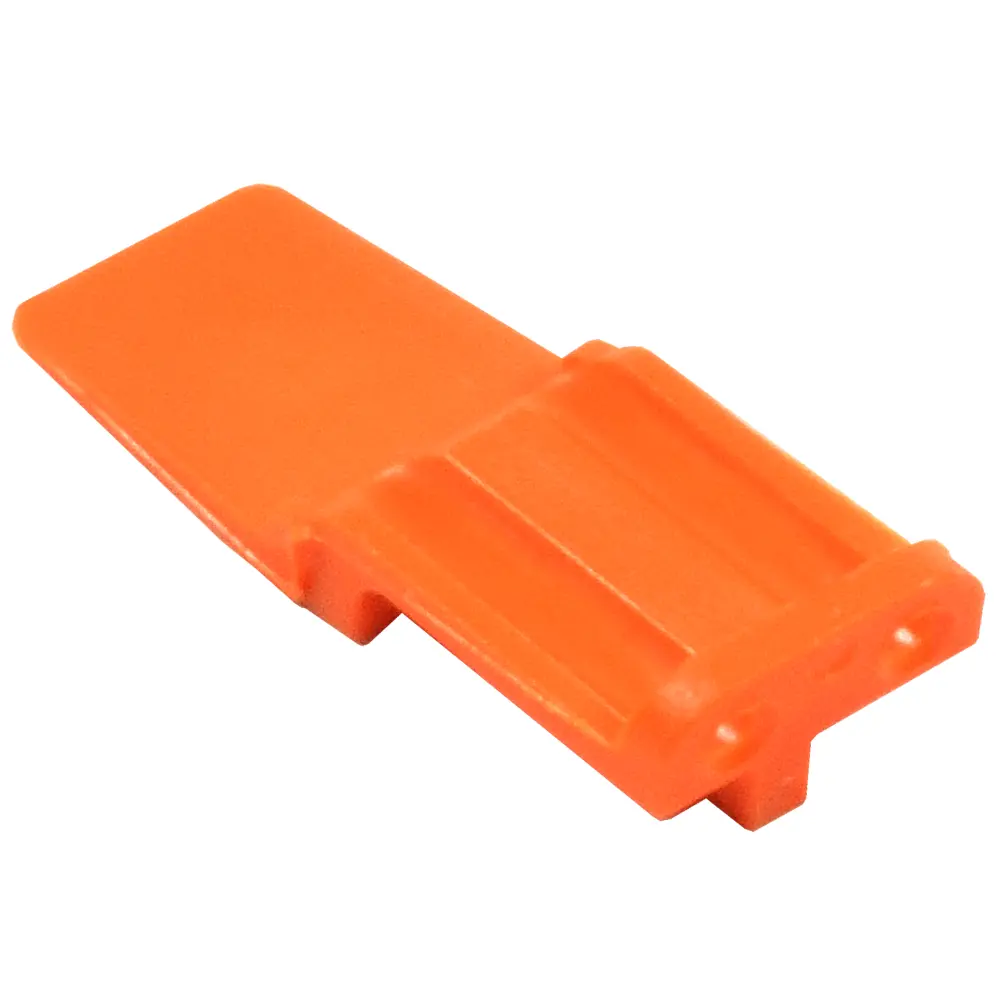

  DTM Wedgelocks:



  Description	Wedgelock For Plugs		Wedgelock For Receptacles
  	Part No.	Color	Part No.	Color

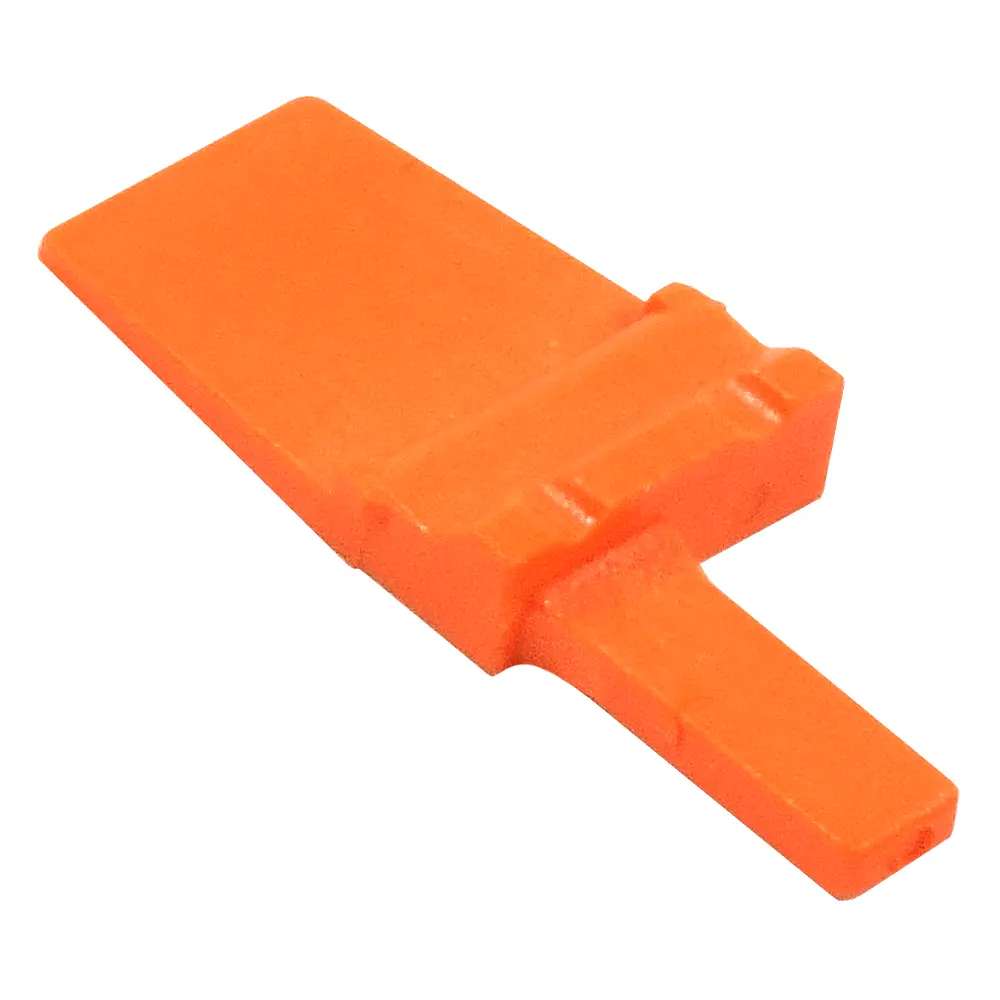

  2-Way	WM-2S	Orange	WM-2P	Orange

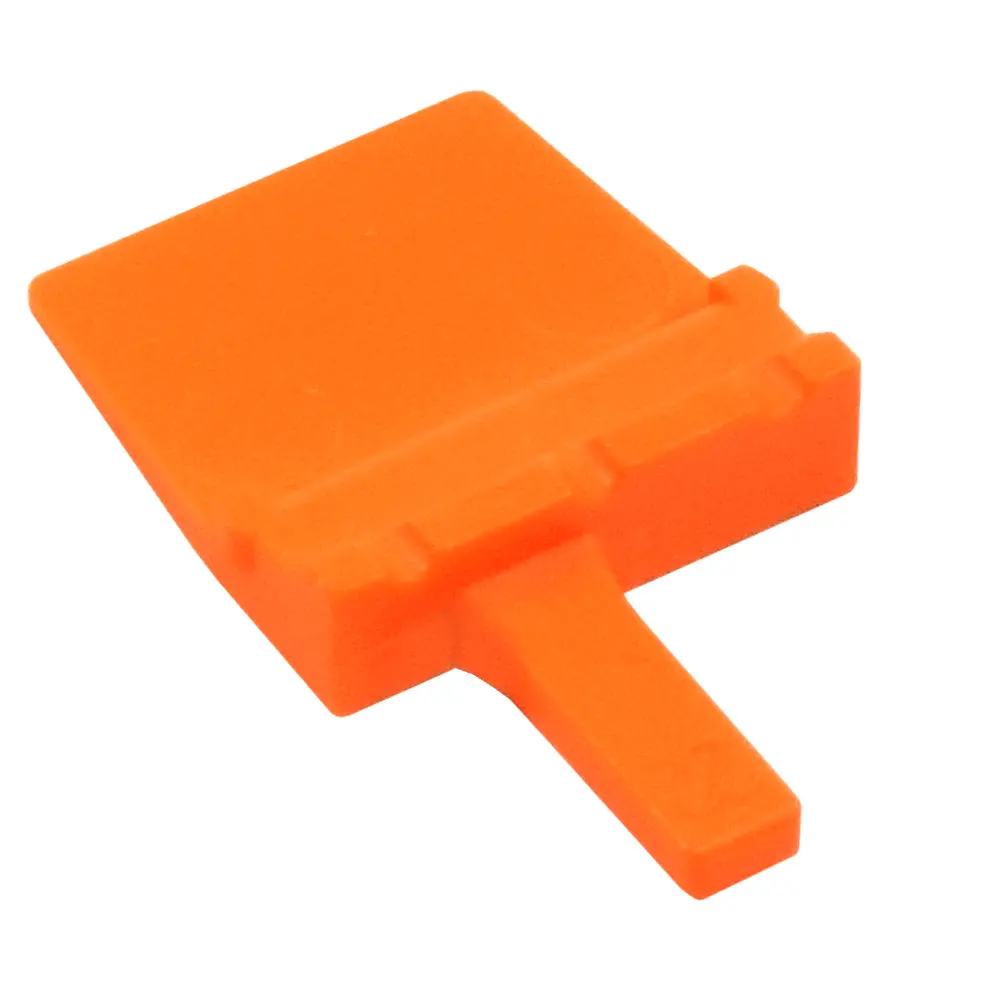

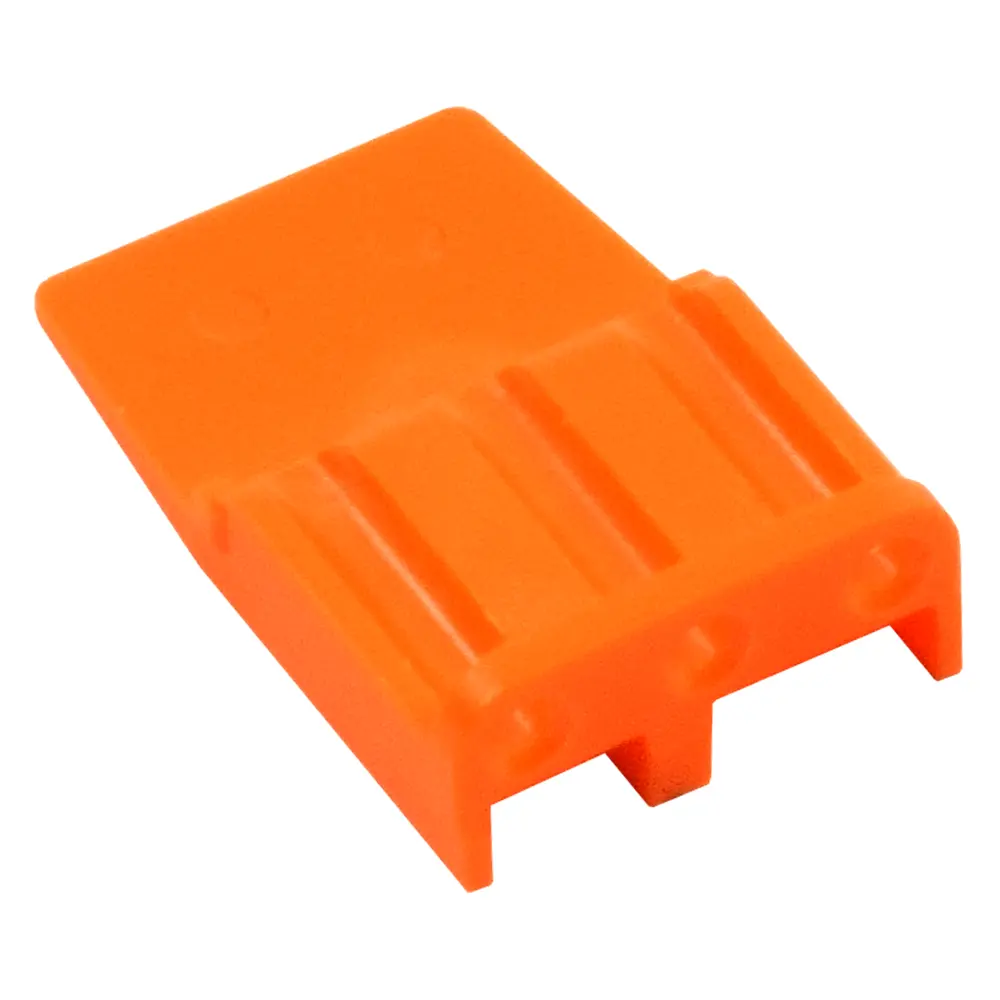

  3-Way	WM-3S	Orange	WM-3P	Orange

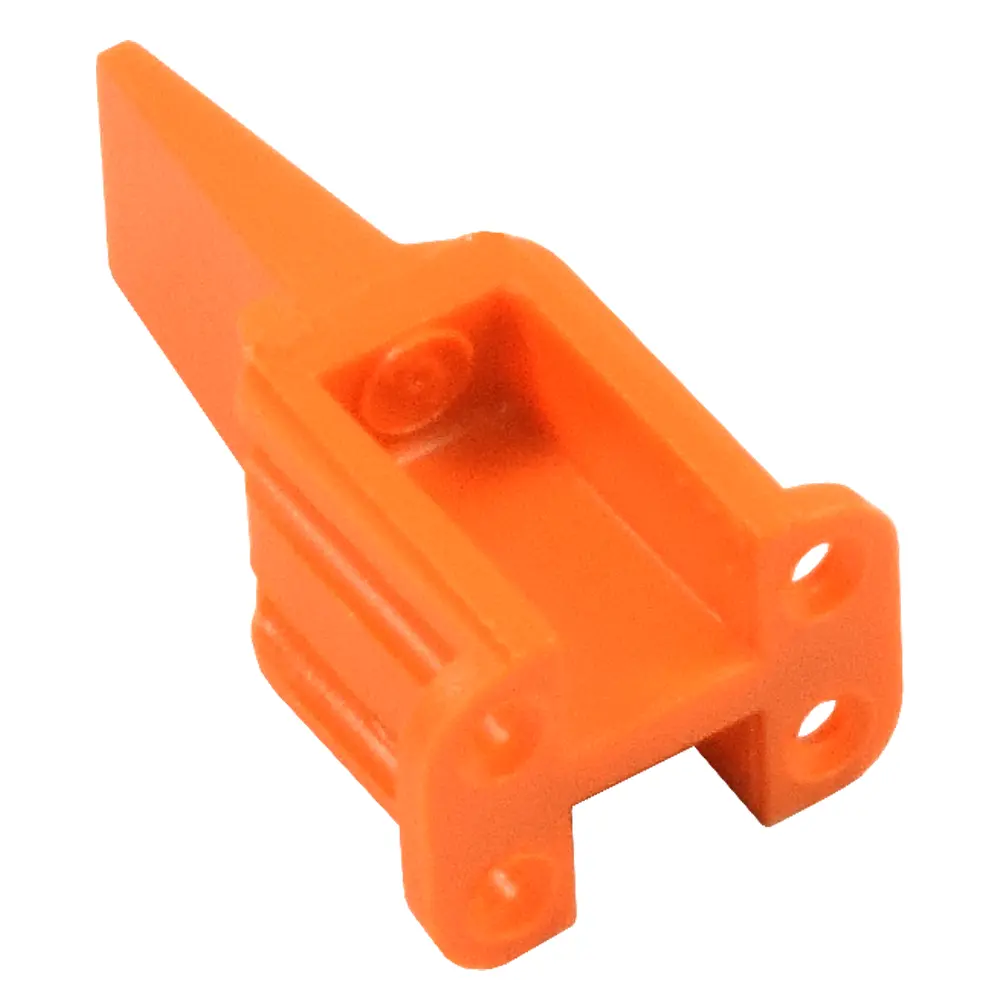

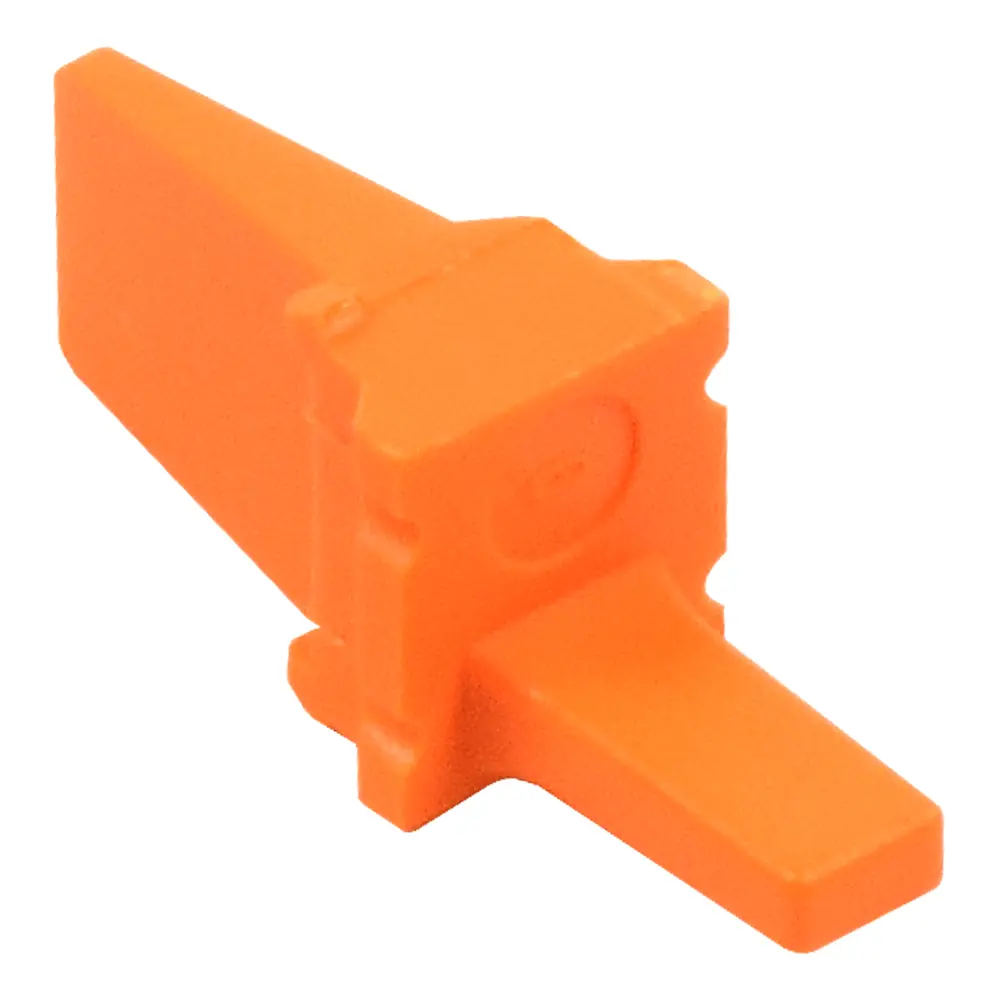

  4-Way	WM-4S	Orange	WM-4P	Orange
  6-Way	WM-6S	Orange	WM-6P	Orange
  8- Way	WM-8S	Orange	WM-8P	Orange
  12-Way	WM-12S	Orange	WM-12P	Orang
