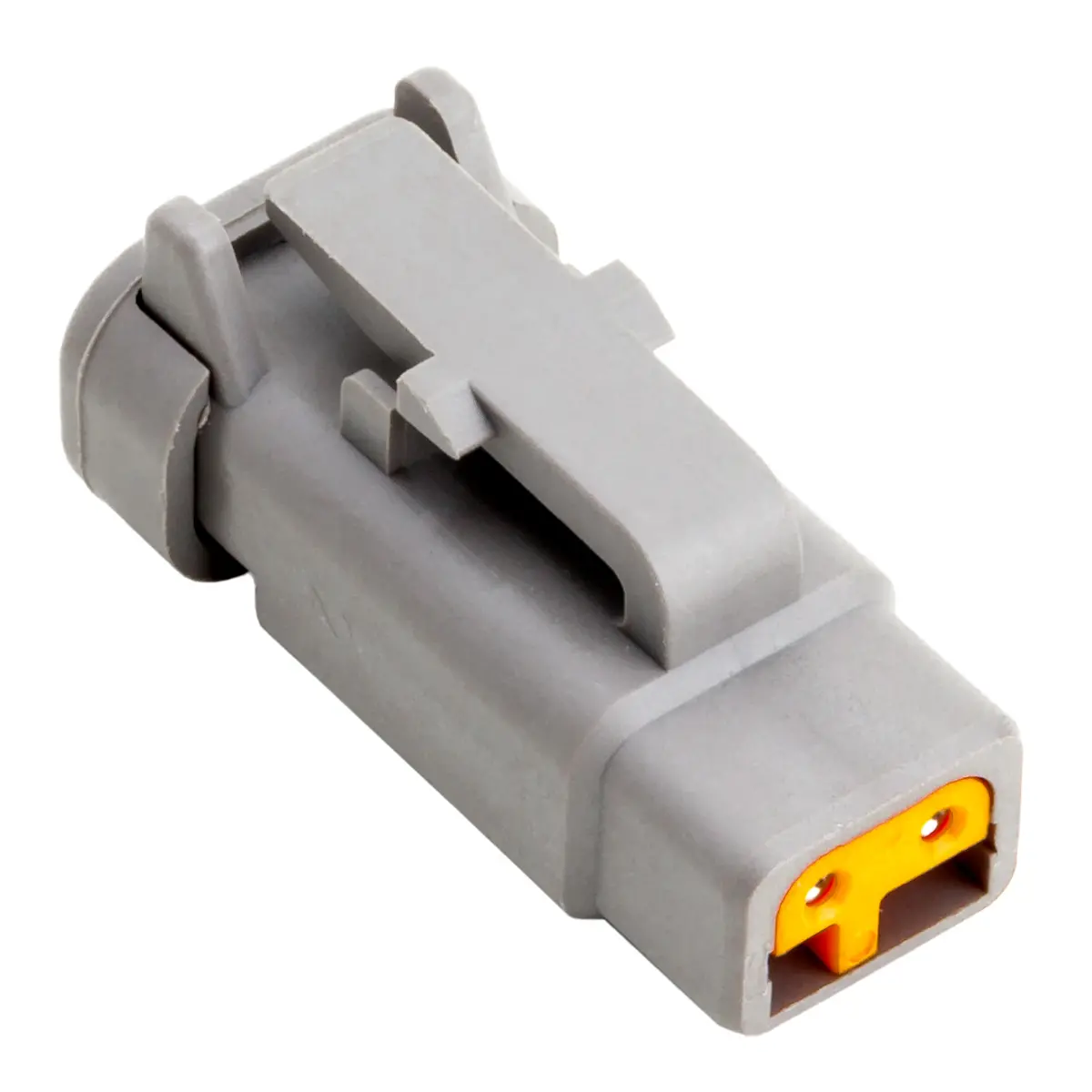

DTM06-2S-P006 Deutsch DTM Series 2-Way Plug Connector with 120 Ohm Resistor

Deutsch
Item No. DTM06-2S-P006
$6.966 / EA
Features & details

TE Connectivity/DEUTSCH DTM06-2S-P006 2-way DTM plug with a built-in 120 ohm terminating resistor. Plugs directly into the end of a CAN bus / SAE J1939 backbone to terminate it. The wedgelock is built in and no contacts are required.

you can now configure Deutsch DTM series connectors by using our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM06-2S-P006 Details
  • Housing Color: Gray
  • Keyway: A (this is typically indicated by the gray color of the housing, though some exceptions to this rule exist).
  • Modification: P006 (Built-in 120 ohm terminating resistor)
  • Overall Width: .569 (14.45)
  • Overall Length: 1.145 (29.08)
  • Overall Height: .508 (12.90)
Connector Boots
  • Not Available
Technical Information
  • The Specifications Tab lists technical data as well as other helpful information.
  • The Documents section lists CAD models, technical drawings, and catalog pages when available.
  • DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.
Notes
  • Please see the Mating Connectors tab to purchase the mating connector.
