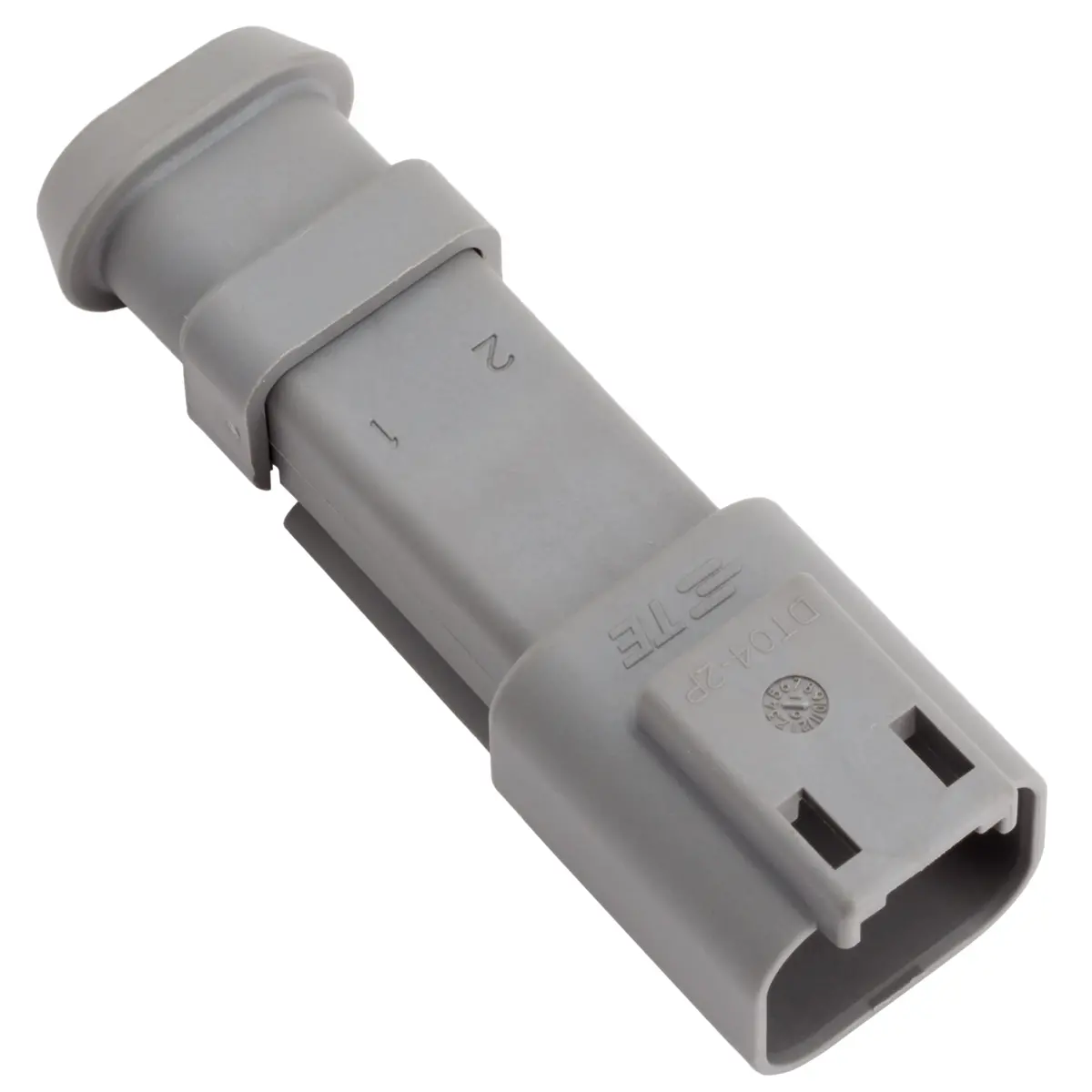

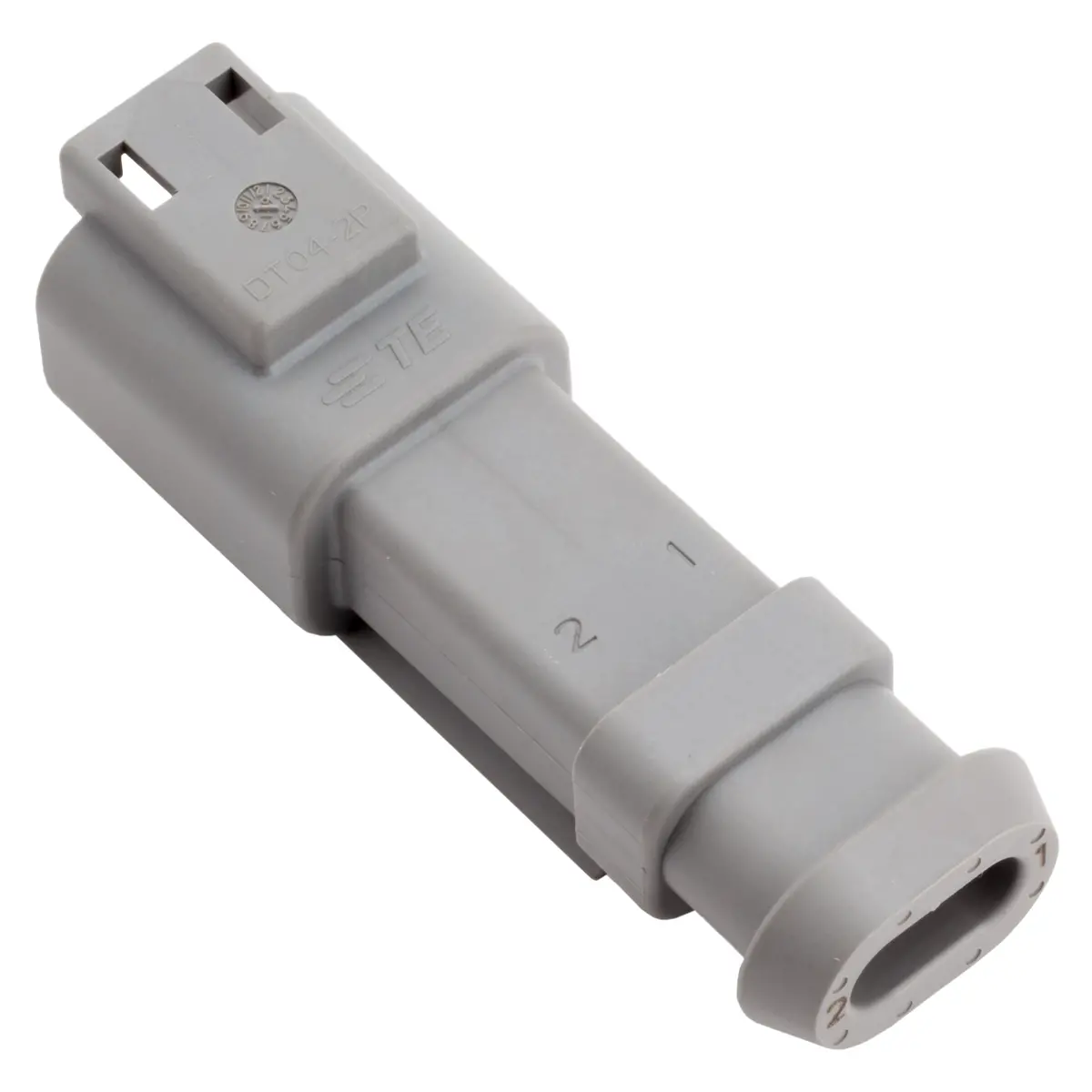

DT04-2P-E008 Deutsch DT Series 2-Way Receptacle Connector

Name: REC, 2P, GRY, N, XCAP
SKU: DT04-2P-E008
Price: 2.41 USD
Availability: InStock

Deutsch

Item No. DT04-2P-E008

$2.411 / EA

Features & details

TE Connectivity/DEUTSCH DT04-2P-E008 2-way DT Receptacle housing. Compatible with stamped and solid barrel, size 16, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.

you can now configure Deutsch DT series connectors by using our Deutsch DT Series Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DT04-2P-E008 Details

Wire Range: 14-20 AWG (0.5-2 mm)
Housing Color: Gray
Contact Size: 16 (each terminal is rated for 13.0 amps.)
Keyway: A (this is typically indicated by the gray color of the housing, though some exceptions to this rule exist).
Modification: E008 (Shrink boot adapter)
Overall Width: .675 (17.15)
Overall Length: 2.201 (55.90)
Overall Height: .670 (17.02)

Connector Boots

Straight Rubber BootRBT-DT2
Straight Shrink Boot204W511-25-0

Mating Connector(s)

Required Wedgelock

Solid Contacts

20-16 AWG Nickel0460-202-16141
20-14 AWG Nickel0460-215-16141
20-16 AWG Gold0460-202-1631
20-14 AWG Gold0462-215-1631

Stamped Contacts

20-16 AWG Nickel1060-16-0622
14-18 AWG Nickel1060-16-0122

Mounting Clips

Plastic Mounting Clip1011-026-0205
Stainless Steel Mounting Clip1027-003-1200

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.
DT series connectors are compatible with Amphenol AT series connectors and related accessories.

Notes

Please see the Mating Connectors, Tools, Wedgelocks, Contacts, Boots, and Clips tabs to purchase the mating connector, crimp tools, wedgelocks, contacts, boots, and mounting clips.

Price $2.411 / EA

Shipping details

Availability: 510 Each In Stock, ready to be shipped

Quantity:

Configure in Deutsch Kit Builder

Documents

DT04-2P-E008 DATASHEET

DT04-2P-E008 CAD FILE
