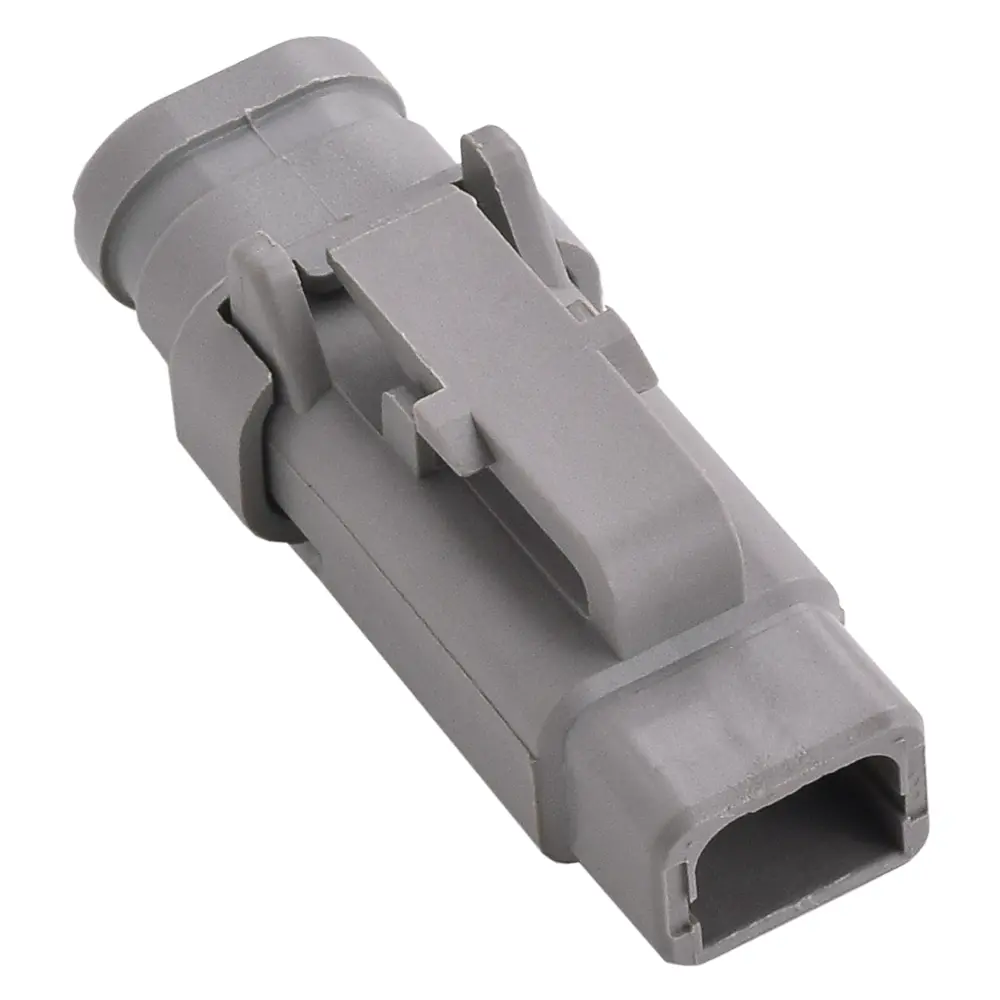

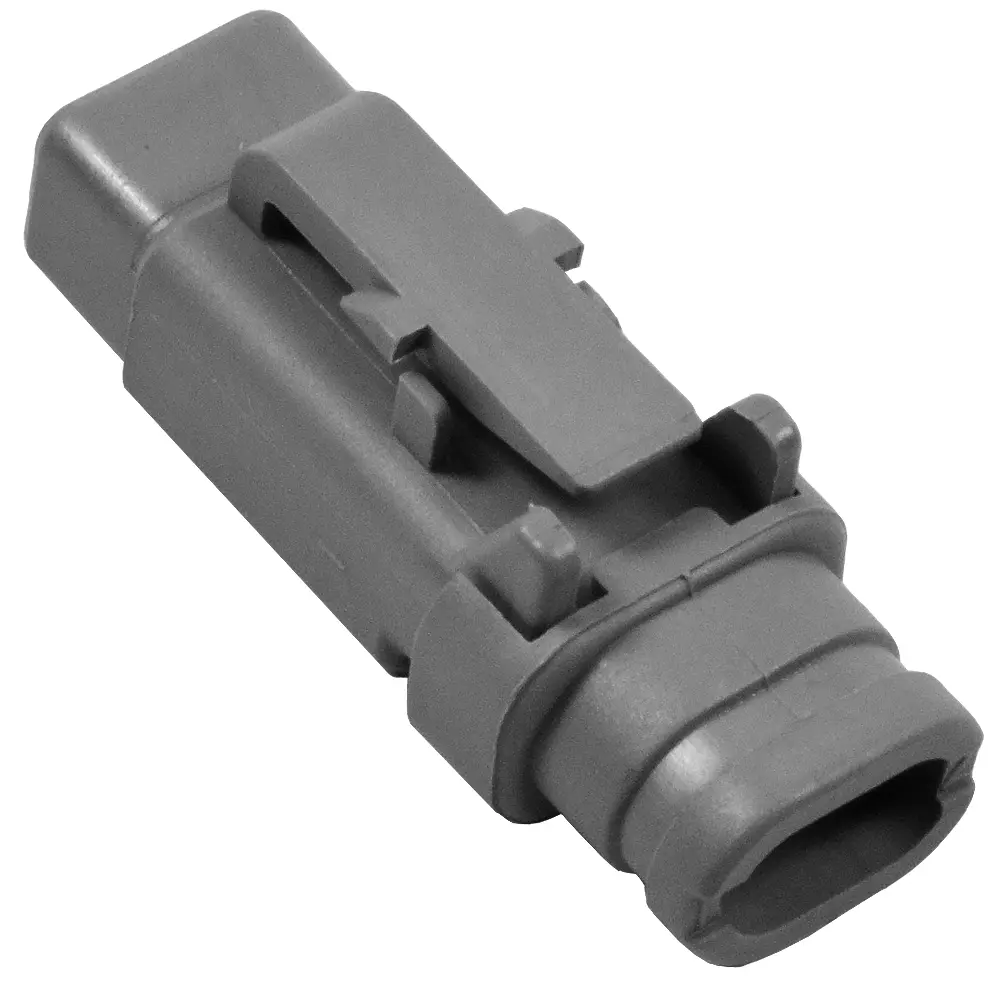

DTM06-2S-E007 Deutsch DTM Series 2-Way Plug Connector

Name: DTM06-2S-E007
SKU: DTM06-2S-E007
Price: 1.39 USD
Availability: InStock

Deutsch

Item No. DTM06-2S-E007

$1.387 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$1.387	$1.39
10	$0.928	$9.28
50	$0.913	$45.65
100	$0.867	$86.70

Features & details

TE Connectivity/DEUTSCH DTM06-2S-E007 2-way DTM Plug housing. Compatible with stamped and solid barrel, size 20, socket (female) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.

you can now configure Deutsch DTM series connectors by using our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM06-2S-E007 Details

Wire Range: 20-24 AWG (0.2-0.5 mm²)*; 18-16 AWG (0.8-1.3 mm²) with the 18-16 AWG solid contacts listed below
Housing Color: Gray
Contact Size: 20 (each terminal is rated for 7.5 amps.)
Keyway: A (this is typically indicated by the gray color of the housing, though some exceptions to this rule exist).
Modification: E007 (Shrink boot adapter / extended cap)
Overall Width: .569 (14.45)
Overall Length: 1.470 (37.34)
Overall Height: .508 (12.90)

Connector Boots

Straight Rubber BootRBT-DTM2
Straight Shrink Boot202A111-25-0

Mating Connector(s)

DTM04-2P

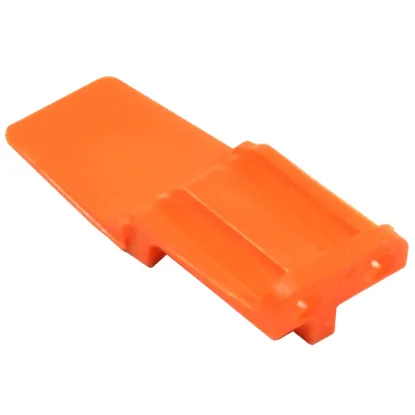

Required Wedgelock

WM-2S

Solid Contacts

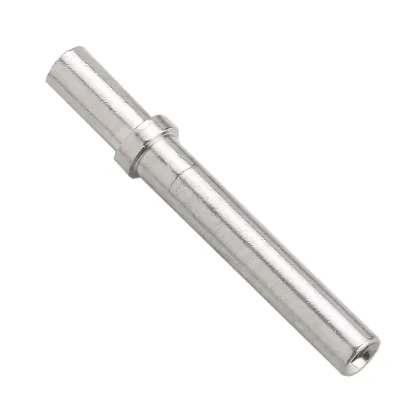

20-24 AWG Nickel*0462-201-20141

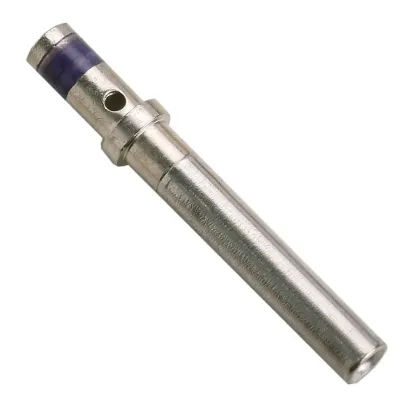

18-16 AWG Nickel0462-005-20141
24-20 AWG Mil-Spec GoldM39029/5-115

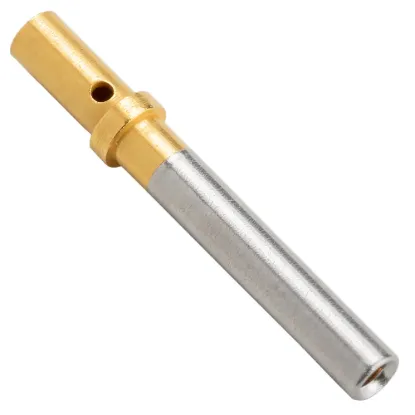

20-24 AWG Gold*0462-201-2031

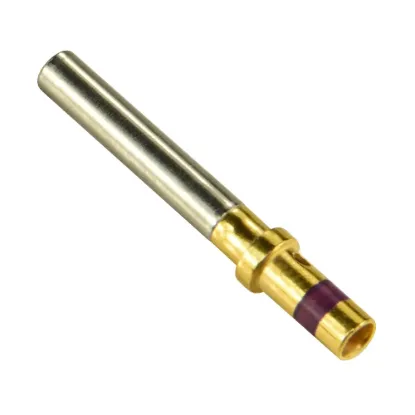

18-16 AWG Gold0462-005-2031

* 18 AWG wire can be used if the wire is stripped perfectly.

Stamped Contacts

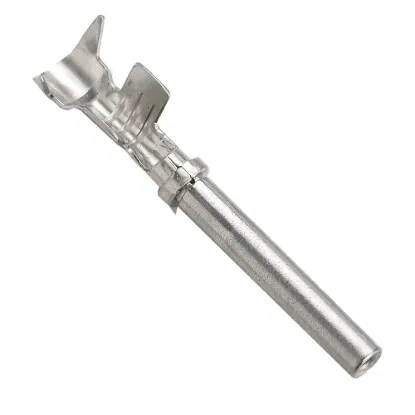

22-16 AWG Nickel1062-20-0122

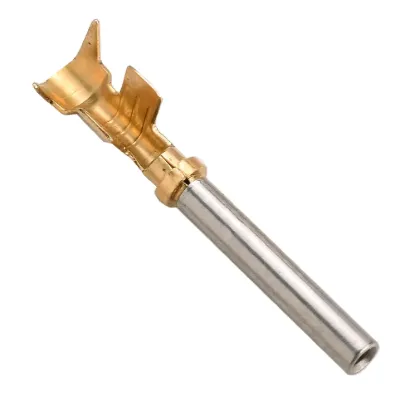

22-16 AWG Gold1062-20-0144

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Notes

Please see the Mating Connectors, Tools, Wedgelocks, Contacts, and Boots tabs to purchase the mating connector, crimp tools, wedgelocks, contacts, and boots.
