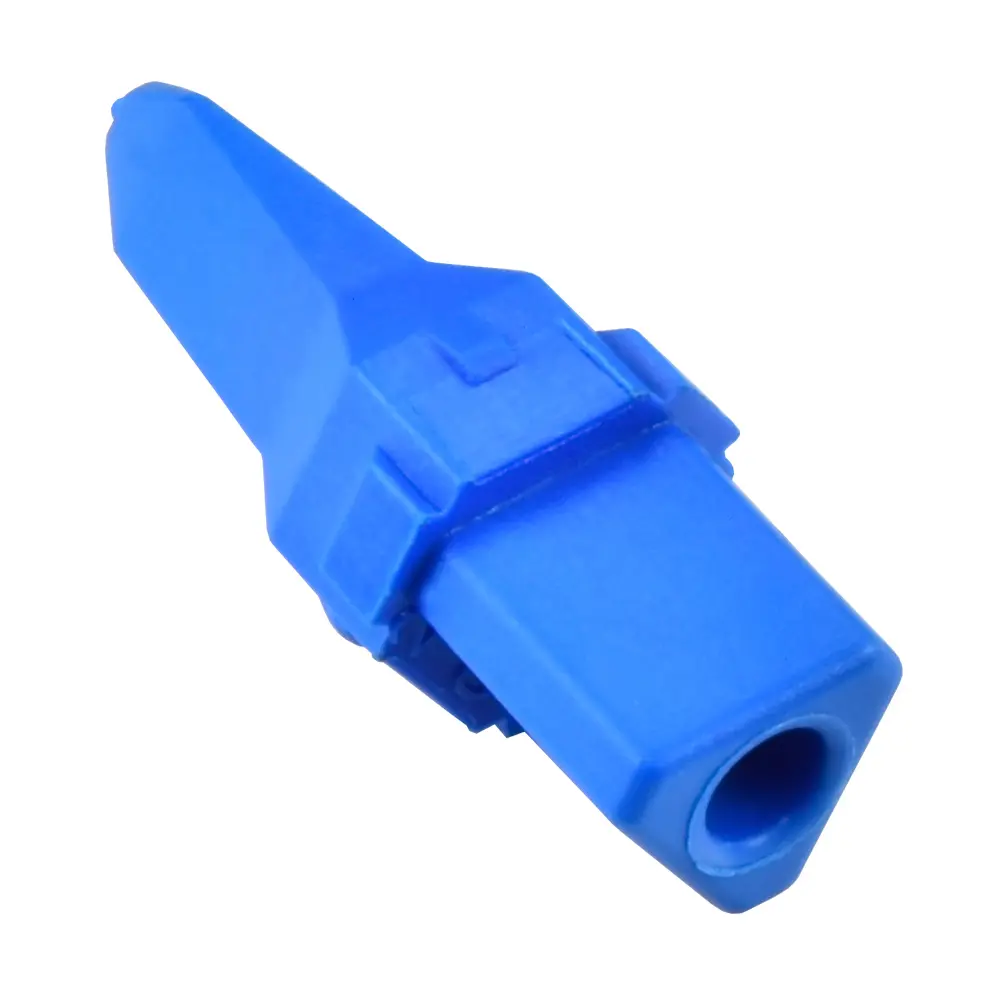

TE Connectivity/DEUTSCH W3P-1939 blue wedgelock (secondary lock) for 3-way DT receptacle housings. After the pin (male) contacts are crimped and pushed into the housing, the wedgelock snaps in from the front to lock and align them. Every DT housing needs one, and it is sold separately. The keyed version is used on 3-way J1939 (CAN bus) connectors, so a J1939 connector can only be assembled with the matching wedgelock.
you can now configure Deutsch DT series connectors by using our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
W3P-1939 Details
- Series: Deutsch DT
- Positions: 3
- Fits: 3-way DT receptacle housings (DT04 series)
- Color: Blue
- Material: PBT GF30 (30% glass-filled polyester)
- Contact Size: 16, pin (male)
- Type: Keyed wedge lock for J1939 3-way housings
- Operating Temperature: -55°C to +125°C
Removal
- To remove the wedgelock (for example to service a contact), use the DT-RT1 wedgelock removal tool.
Technical Information
- The Documents section has TE's customer drawing and 3D CAD model for this part.
- DT series parts are compatible with Amphenol AT series connectors and related accessories.
