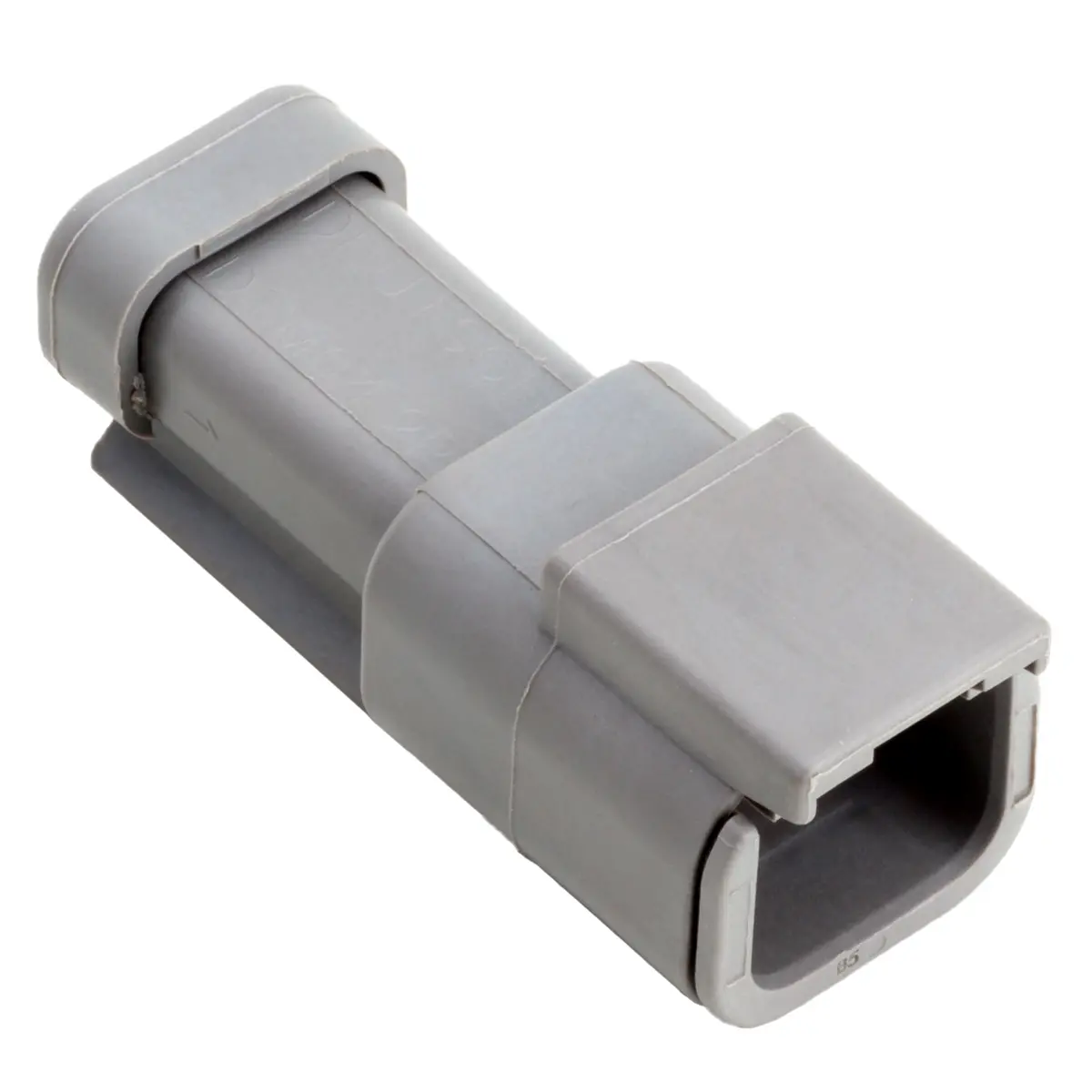

DTM04-2P-P006 Deutsch DTM Series 2-Way Receptacle Connector with 120 Ohm Resistor

Name: REC, 2P, GRY, 120 OHM RESISTOR, A
SKU: DTM04-2P-P006
Price: 8.76 USD
Availability: InStock

Deutsch

Item No. DTM04-2P-P006

$8.761 / EA

Features & details

TE Connectivity/DEUTSCH DTM04-2P-P006 2-way DTM receptacle with a built-in 120 ohm terminating resistor. Plugs directly into the end of a CAN bus / SAE J1939 backbone to terminate it. The wedgelock is built in and no contacts are required.

you can now configure Deutsch DTM series connectors by using our Deutsch Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DTM04-2P-P006 Details

Housing Color: Gray
Keyway: A (this is typically indicated by the gray color of the housing, though some exceptions to this rule exist).
Modification: P006 (Built-in 120 ohm terminating resistor)
Overall Width: .651 (16.54)
Overall Length: 1.680 (42.67)
Overall Height: .638 (16.21)

Connector Boots

Not Available

Mating Connector(s)

Mounting Clips

Plastic Mounting Clip1011-026-0205
Stainless Steel Mounting Clip1027-003-1200

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.
DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.

Notes

Please see the Mating Connectors and Clips tabs to purchase the mating connector and mounting clips.

Price $8.761 / EA

Shipping details

Availability: 59 Each In Stock, ready to be shipped

Quantity:

Documents

DTM04-2P-P006 DATASHEET

DTM04-2P-P006 CAD FILE
